Aluminum Foil Sealing Online Quality Inspection System
For products sealed with aluminum foil using heat sealing or electromagnetic sealing, the limitations of the human eye and conventional cameras prevent them from seeing through the bottle cap or aluminum foil to directly observe the sealing condition. Therefore, traditional inspection methods cannot be used for quality control. With the development of infrared thermal imaging technology, the application of advanced thermal imaging technology combined with digital image processing technology in the automation industry, and the analysis of product temperature distribution using infrared thermal imaging to ensure the integrity of the aluminum foil seal, has become a mainstream trend worldwide.

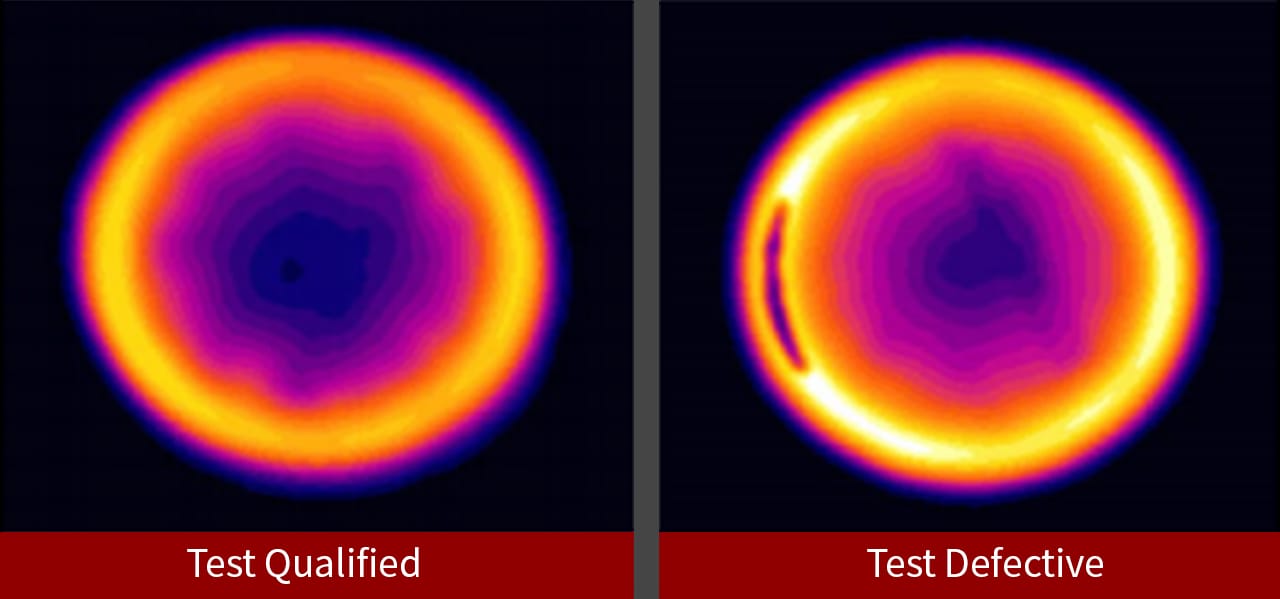

Working Principle:
Working Principle:
Specification:
| Detection Speed | ≥50bottles/min（The actual product may vary from what is shown.） |
| Applicable Filling Methods | Tablets, soft/hard capsules, liquids, powders |
| Applicable Aluminum Foil Types | Single aluminum foil, paper pad, and a composite pad made of paper and aluminum foil. |
| Applicable Bottle Specifications | Bottle diameter≤300mm；Bottle height≤500mm；Bottle spacing≥12mm |
| Applicable Lid Specifications | cap diameter：20mm～200mm； cap structure：CT/ CRC；，Cap shape: Round Cap color：Except for black |
| Installation Location | After the electromagnetic induction/heat sealing machine is installed on the production line. 0.2m-2m 内 |
| Remark | The installation location depends on the specific product. |
Function:
1. Simple and Practical Functional Interface:
The system's main interface adopts a simple design style, with only one level of depth in the operation interface, simplifying the operation process and making the software easier to use. The main interface of the detection system is shown in the image below.
2. Parameter Import Function:
This function aims to reduce debugging time when dealing with multiple testing products. Clicking the "Save" button saves the currently configured parameters. When testing different products, simply click "Load" to import the required parameters and begin testing.
3. Convenient Operation:
Simplify detection parameters and start detection with one click.
4. Production Statistics Table:
The system provides the total quantity, the total quantity removed, and the quantity of qualified products. Customization is available to meet customer needs.

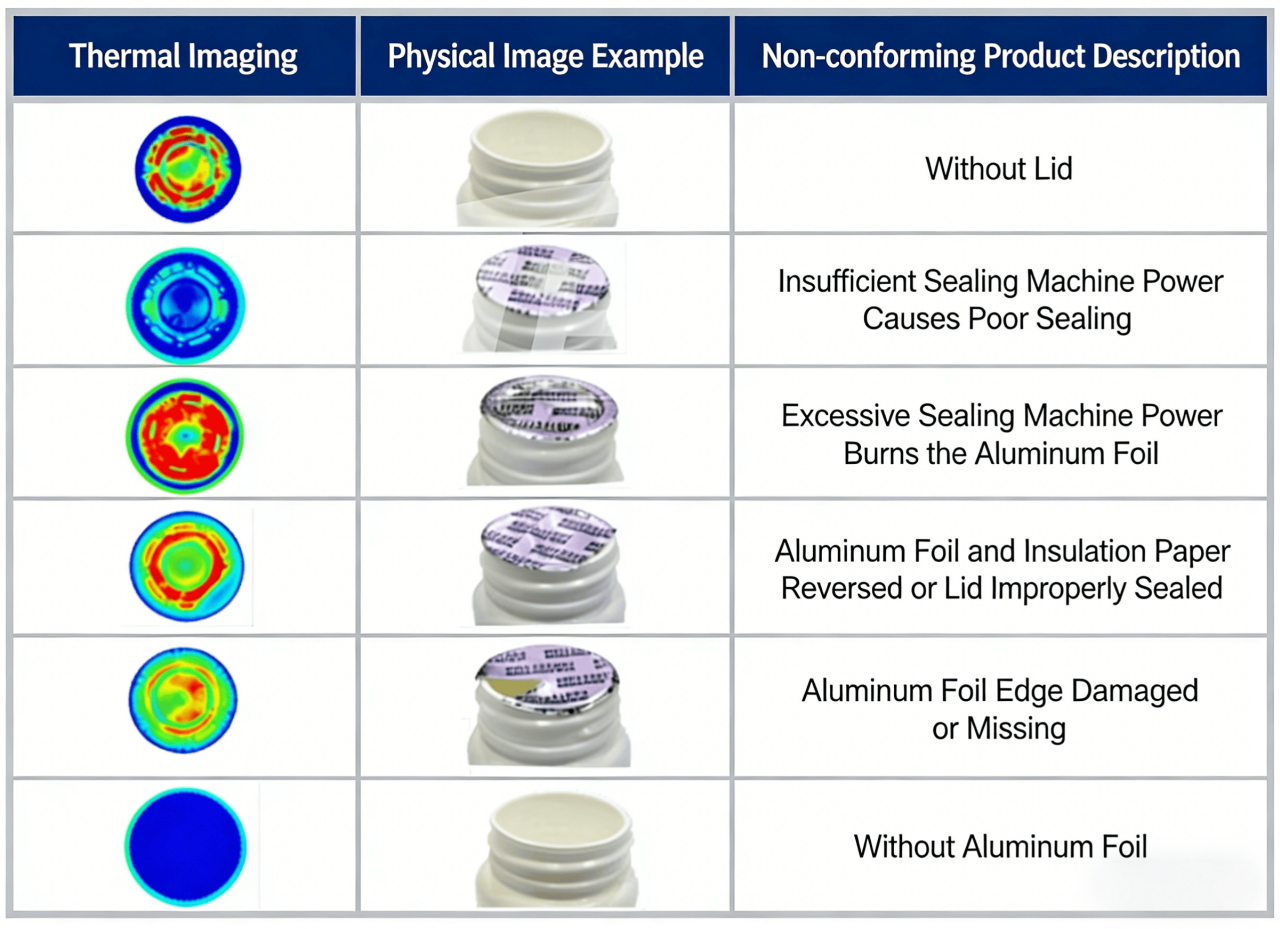

5. Defect Removal and Collection:
Non-conforming products are removed and collected using a cylinder.
