Automatic Bottle Wrapp & Shrink Packaging System (Vertical Bottle PE Film Sleeve Wrapping + Heat Shrink Tunnel Machine)
This upright packing machine is connected to the front-end labeling machine. The products enter the feeding system upright and sequentially, automatically undergo sleeve packing and heat shrink wrapping on the conveyor belt, and are then output upright. The equipment has a compact structure, does not take up space, and does not require the products to be placed upside down, ensuring they do not spill. The operation is simple and easy to master.
Samples:
Specification:

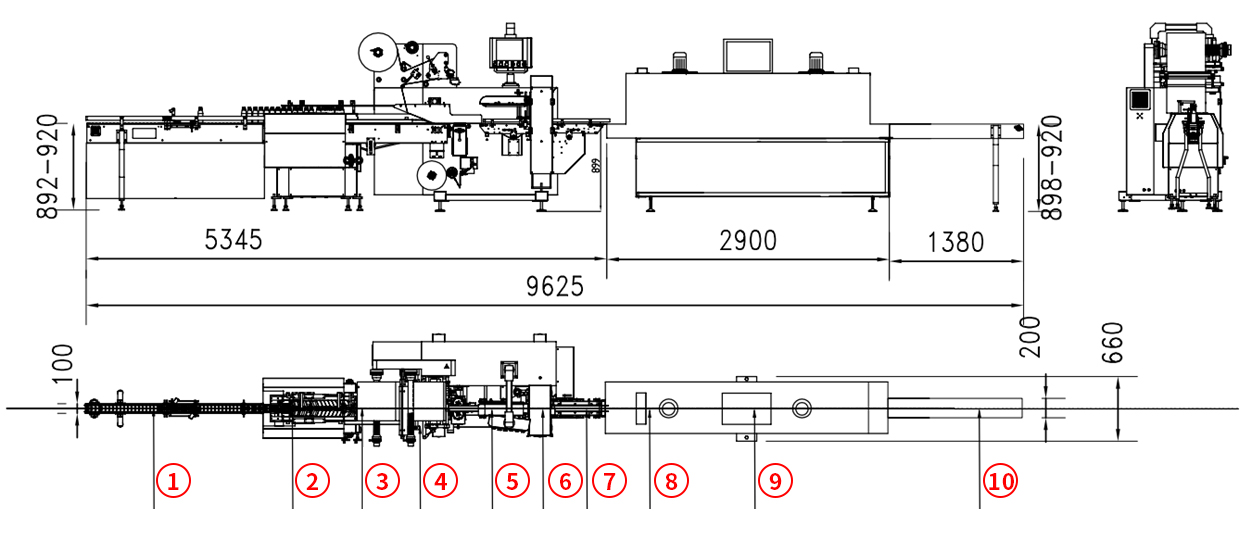

PE Film Wrapping and Heat Shrink Machine Structure
1. Docking Cache Conveyor
2. Fixed Number High-Speed Sorting Machine
3. Indexing Conveyor
4. Bag Making Machine
5. Upper and Lower Clip and Delivery
6. End Sealing
7. Discharge Machine
8. Custom-Built Tall Heat Shrink Tunnel
9. Heat Shrink Tunnel Control Panel
10. Docking Conveyor
| Production Capacity | 30 - 100 packages per minute (depending on the unloading condition of the packaging material) |
| Applicable Bottle Type | Bottles: up to Φ80 mm; up to 250mm height, In packs of six Customized according to the customer's packaging requirements. |
| Equipment Power and Voltage | Film Lamination and Cutting: AC 220V, 50Hz, about 4.5 KW Heat Shrink: AC 380V, 50Hz, about 16 KW |
| Gas Consumption | 100L/min |
| Overall Dimensions | 7700×1100×1700mm(Length × Width × Height) |
| Machine Weight | about 1000Kg |
Function:
1. Full servo control, with low noise, simple and convenient operation, and high control accuracy.
2.Push rod type conveyor belt, touchscreen control, fixed bagger.
3.Due to the straight-up-and-down running path of the cutting knife, and the belt connection for discharging after packing, it can ensure the stable discharge of the products, increase the packing speed, and complete packing within the shortest bag length. Especially for products requiring high speed, this equipment's stable operation mode and bag length feature offer more advantages compared to the rotating machine. It also reduces unnecessary actions and the troubles caused by bottle flipping. It lowers the packing cost, is very economical, and has an extremely low usage cost.
4. The reciprocating packing machine has a long heat sealing time, and the sealing is very firm. Especially for this type of high-speed required product, it wastes less material, has a high yield rate and high production efficiency.
5.The reciprocating packing uses a full-power belt at the bottom to drive the product operation, ensuring a smooth transition during the cross-sealing process. This overcomes the defect of the rotating machine being prone to misalignment and deviation, ensuring that the top of the product, the bottle pattern, and the sealing line are parallel and always maintaining that the sealing line is on the center line of the product thickness, guaranteeing the aesthetic appearance of each product.
6.The entire process of material supply and packing is carried out by belt-assisted transfer, ensuring that the products do not tilt or shift during the transportation process.
7.Full servo control, with high precision. Full screen fault display and alarm, making maintenance easy. Menu storage function, allowing for easy retrieval and use.
