Automatic Heat Shrinking Wrapping Machine (Horizontal Side Seal + Heat Shrink Tunnel Machine)
The fully automatic heat shrink machine is suitable for packing with heat shrink films for dairy products, milk tea, cosmetics, daily necessities, etc. The fully automatic heat shrink film packing machine and heat shrink oven are designed for continuous production lines and large-scale packing. According to the specific conditions of the products, an automatic feeding system can be selected to achieve unmanned feeding. Due to the fully enclosed packing and continuous operation of this machine, the overall efficiency is high, and the sealing of the packaged products is in a linear shape.
Samples:
Features:
1. A large full-color touch-screen control system, which is extremely easy to operate and has an attractive appearance.
2. Use a single or multiple servo motors to achieve more precise control;
3. The AC motor is equipped with a frequency converter, enabling stepless speed control. The speed can be dynamically adjusted during operation.
4. The new type of longitudinal sealing heating can seal at low temperatures, reducing the need for stoppage for film heating and lowering the waste rate.
5.The heat shrink oven features two temperature zones with efficient performance and automatic temperature control.
6.Efficient hot air circulation ensures excellent shrinkage quality; additional advanced configurations such as electrostatic adsorption can also be selected, with modular options available.
Specification:
| Production Capacity | ≥ 60 Packages/min (Depending on the thickness of the film, the material and the specific conditions of the product) |
| Packaging Range | Lying Down Bottles: L*W*H(mm):(140-480)*(30-200)*(40-100) |
| Packaging Material | Shrink Film: PVC, POF, etc. Max. Width: <450mm |
| Equipment power and voltage | Film lamination and cutting: 220V, 50Hz, about 5 kW |
| Heat shrink: AC380V, 50Hz, about 18 kW | |
| Gas Consumption | 100L/min |

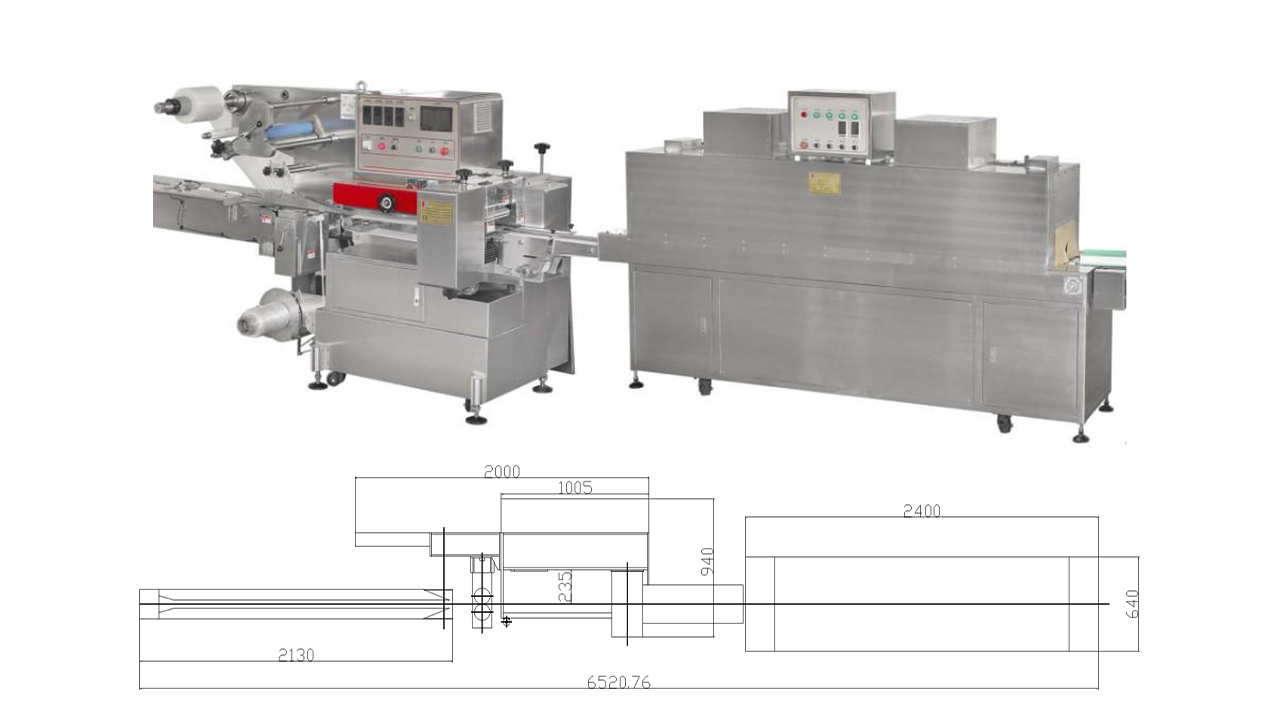

| Overall Dimensions | Automatically lays the bottle on its side and conveys to the separate compartment: 2000*200*1200mm Packaging Machine: 2600*1100*1600mm Shrink Tunnel: 2400*640*1600 Non-standard configurations supported based on the client's site conditions and specific requirements. |
| Machine Weight | about 1200KG |
