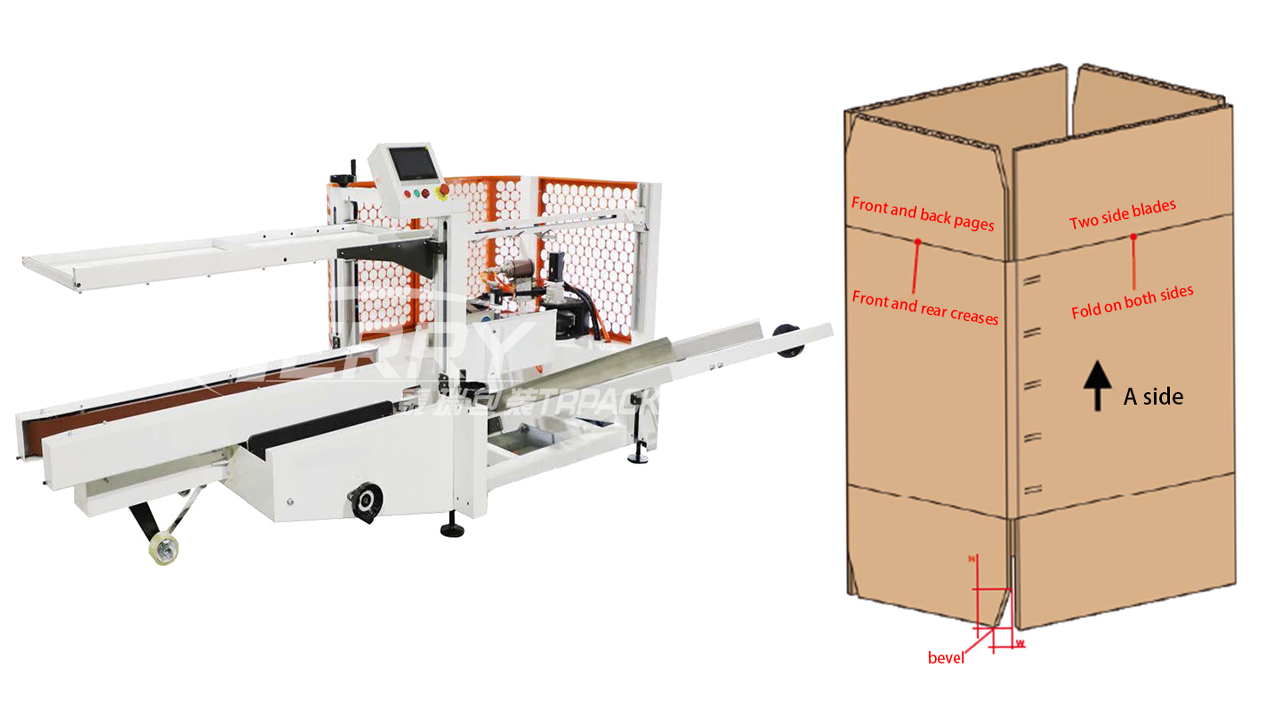

Automatic Horizontal Carton Opening Machine
All packing processes such as box suction, opening, forming, bottom folding, and bottom sealing can be completed at once. The inclined non-powered box storage design enables continuous replenishment of boxes without the need for machine shutdown. The touch screen control makes operation, management, and labor reduction much more convenient, and it is an indispensable equipment for automated large-scale production. This machine can be used independently or seamlessly connected with front-end and rear-end equipment.
Samples:
Features:
1.The walking box is driven by two servo motors to operate the belts on both sides. This design ensures that the belts on both sides run synchronously, thereby maintaining the rectangular shape of the carton.
2.The sides of the box are designed with an open structure, which enables the operator to have a better view and operate more conveniently.
3. The entire machine is highly automated in conjunction with the mechanical hand, featuring low noise, smooth operation during use, and does not damage the cartons.
4. The storage box adopts a tilted, self-powered design. It can replenish the cartons at any time without requiring a shutdown.
Specification:
| Carton Opening Speed | 5~30pcs/min The actual production capacity varies depending on factors such as product size, packing material type, and material properties. |
| Carton Opening Size | L:280-500mm W:150-400mm H:150-400mm |
| Applicable Adhesive Tape | W48/W60/W75 *,choose one |
| Total Power | 2.1kw |
| Air pressure source supply | 6kg/cm² |
| Power Supply/Power | 220V 50Hz |
| Overall Dimensions | 2845×2000×1400mm(L×W×H) |
| Weight | about 620Kg |
