TBD-150 Fully Automatic Multi-functional Labeling Machine
This equipment is an ideal device for quickly and automatically applying labels to various packing products such as square and flat bottles, round bottles, etc. in the packaging industry. This machine is advanced in function, easy to operate and has a compact structure.
It adopts photoelectric detection, PLC control and touchscreen software operation. The conveying, bottle support and bottle separation all have stepless speed adjustment. The labeling is accurate. At the same time, it has functions such as automatic labeling for all items, automatic correction for no labels, and automatic detection.
Specification:
| Production Capacity | ≥ 60 Packages/min (Depending on the thickness of the film, the material and the specific conditions of the product) |
| Packaging Range | Lying Down Bottles: L*W*H(mm):(140-480)*(30-200)*(40-100) |
| Packaging Material | Shrink Film: PVC, POF, etc. Max. Width: <450mm |
| Equipment power and voltage | Film lamination and cutting: 220V, 50Hz, about 5 kW |
| Heat shrink: AC380V, 50Hz, about 18 kW | |
| Gas Consumption | 100L/min |
| Overall Dimensions | Automatically lays the bottle on its side and conveys to the separate compartment: 2000*200*1200mm Packaging Machine: 2600*1100*1600mm Shrink Tunnel: 2400*640*1600 Non-standard configurations supported based on the client's site conditions and specific requirements. |
| Machine Weight | about 1200KG |
Function:

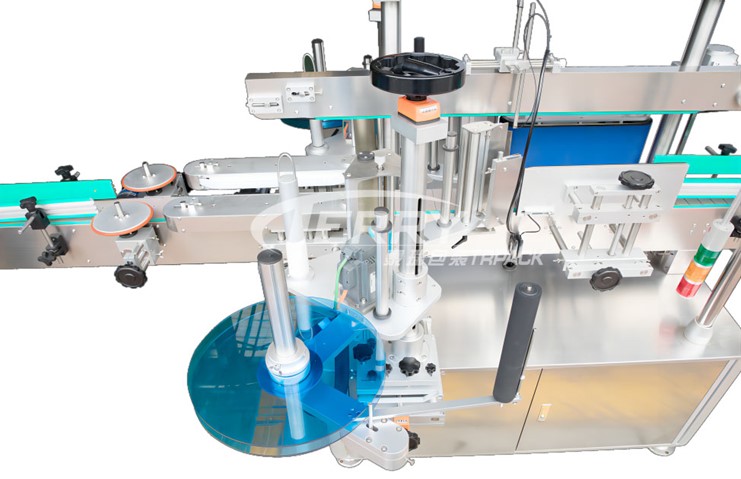

1. This equipment has a wide range of applications and can be used for multiple purposes. It can be used for labeling of square and flat bottles as well as for automatic labeling of round bottles.

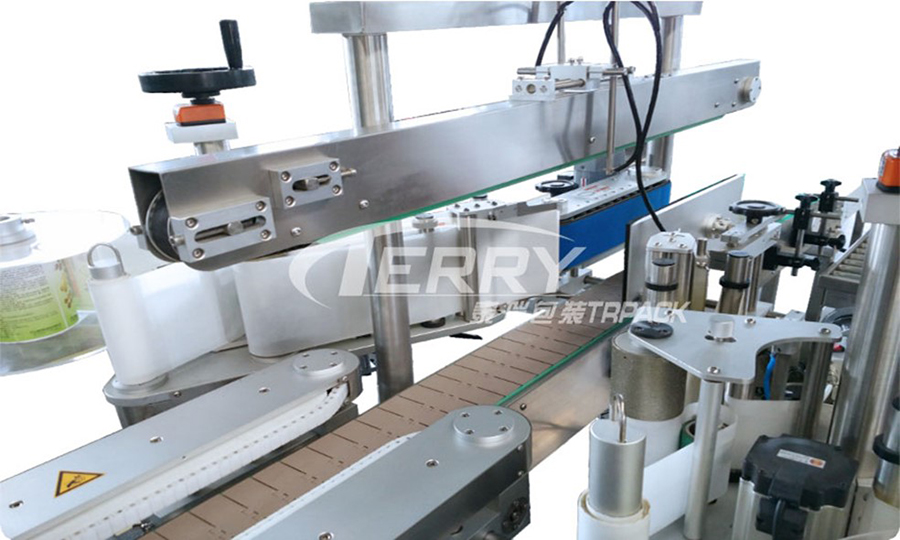

2. Labeling Synchronization Mechanism: Presses down on the top of the bottle to ensure more stable labeling.
3. It is controlled by a microcomputer and features a touch-screen software operation interface, making parameter adjustment more convenient and intuitive.
4.The labeling system is controlled by a servo motor to ensure the accuracy of labeling.
5.The pure alloy label-feeding roller eliminates slippage, ensures stable label delivery, and offers superior wear resistance—making it significantly superior to traditional rubber rollers.
6.The label eye has adjustable sensitivity. It can identify labels with different light transmittance and adjust the sensitivity accordingly. It can also make the best adjustments for labels of different lengths, ensuring normal label printing and smooth and accurate label application.
7.This machine has a reminder and warning function for its operating status and faults. When the system is running, shutting down, or experiencing a fault, it will give an alarm notification for the occurrence of the event.
8.The entire machine is equipped with imported electrical components and a tailor-made integrated electronic control system, which is more stable, reliable, safe, environmentally friendly and energy-efficient.
