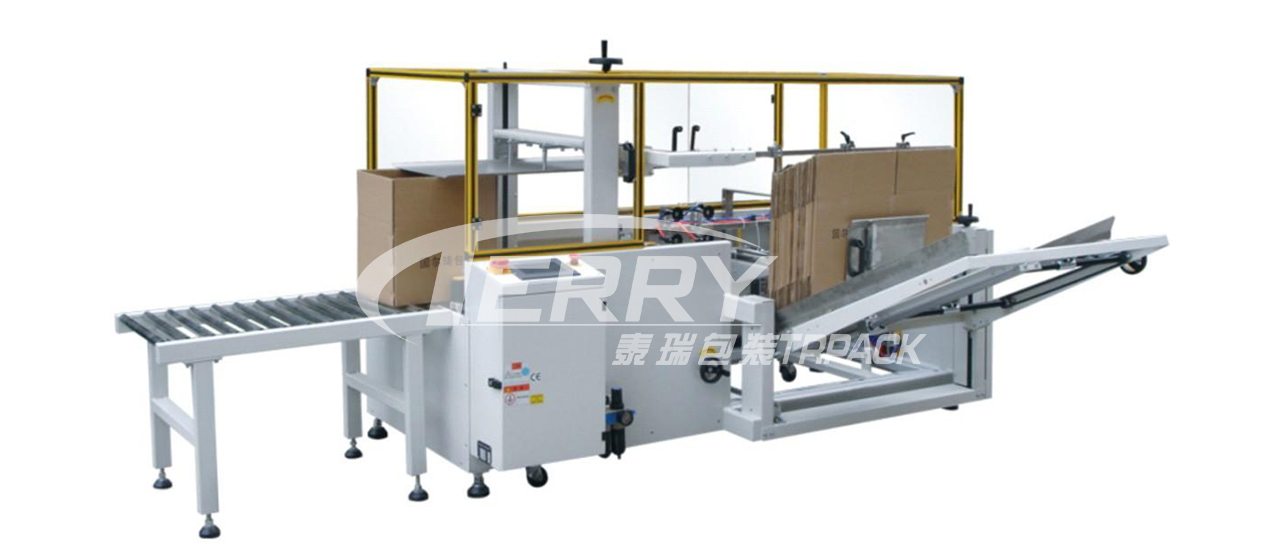

TR-01L Automatic Vertical Carton Erecting Machine
The TR-01L Automatic Vertical Case Erector is a specialized piece of equipment capable of automatically executing a series of tasks, including case erection, forming, bottom flap folding, bending, and immediate bottom tape sealing.
It then unfolds the stacked cardboard box, folds the bottom of the box according to a certain procedure, seals it with adhesive tape, and transports it to the packaging machine. All paper box-forming machines are controlled by PLC and display screen, which greatly facilitates operation and is indispensable equipment for large-scale automated production.
Samples:
Features:
1. It is manufactured using international advanced technologies and incorporates imported components, electrical components and pneumatic components.
2. The cardboard is stored in a vertical manner, and it can be replenished at any time without stopping the operation.
3. It is suitable for packing with the same type of cartons of the same size at the same time. If you need to change the carton size, you can adjust it manually. The time required for the adjustment depends on your proficiency and is about 3 to 5 minutes..
4. Rational design, simultaneous molding, with the bottom folded and the cover bottom formed simultaneously in one step.
5. Light in weight and size, with precise mechanical components, smooth operation process, stable and reliable performance, long service life and high efficiency.
6. Install an acrylic protective cover to prevent any accidents during operation.
7. It can be operated independently or be used in conjunction with an automated assembly line.
Specification:
| Applicable Carton | L:200-450mm; W:150-400mm; H:120-350mm |
| Work Surface Height | Minimum 650mm; Maximum 700mm *Designed according to the height of the current production line |
| Carton Opening Speed | 10 - 15 boxes/minute * Actual production capacity may vary depending on product size, packaging material, etc. |
| Applicable adhesive tape | W48-60-75mm * L1000 inches * The widest and narrowest tape sizes cannot be used simultaneously |
| Storage capacity of cartons | 50 - 70 pieces * May vary depending on product size, packing material, etc. |
| Power supply | AC 220V 50/60Hz |
| Power | 0.4 KW |
| Gas Source | 0.6 ~0.8Mpa，(Use dry and clean compressed air) |
| Gas Consumption | 50 L/min |
| Equipment Dimension | 2700*1850*1500mm（L*W*H） |
| Equipment Weight | 750 Kg |
