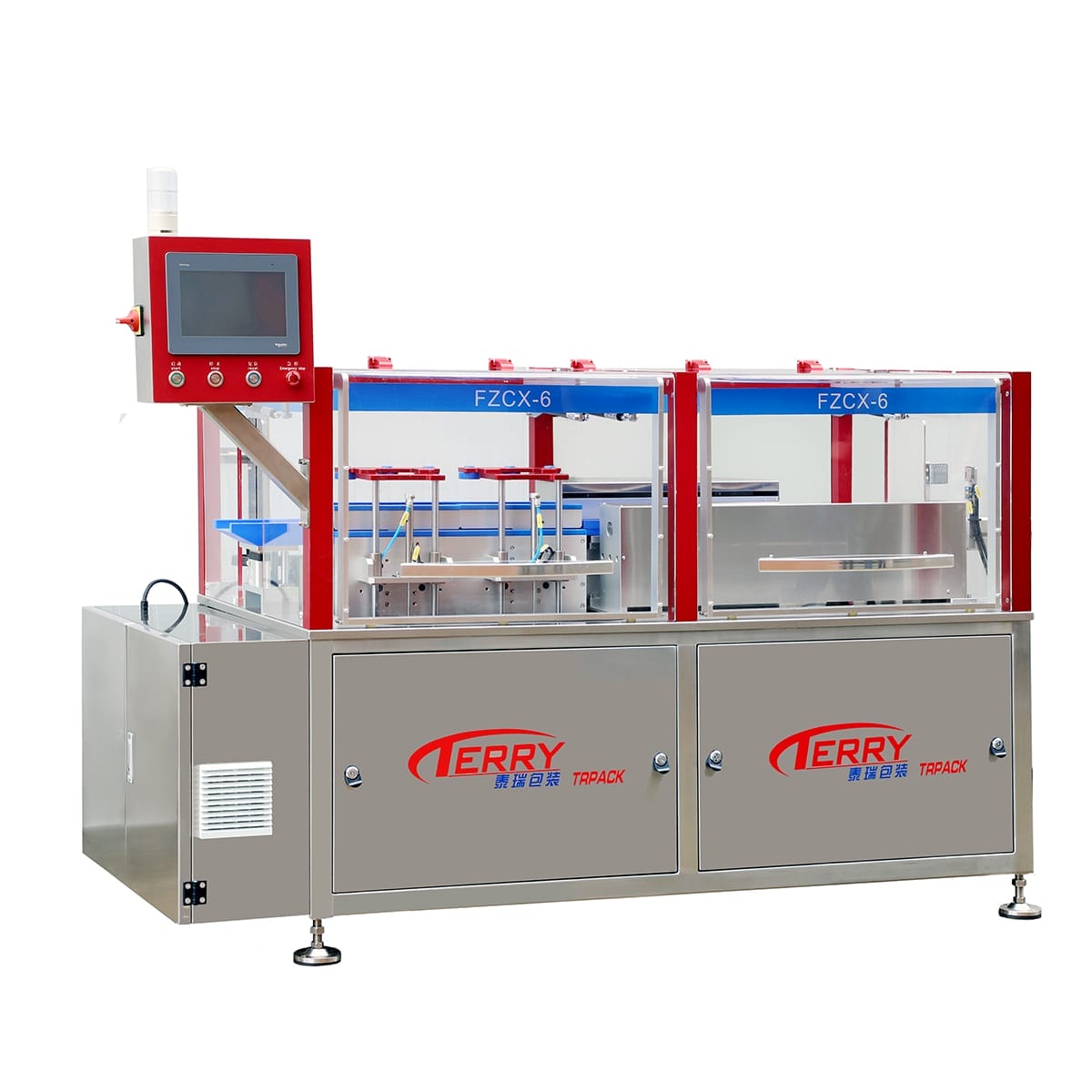

TR-FZCX Automatic Flip Bottle Air Rinser
The TR-FZCX Fully Automatic Bottle Air Rinser is a cutting-edge bottle cleaning solution for a variety of cosmetic and daily chemical bottles and jars. It is specifically designed for bottles that cannot be washed with water. When bottles are conveyed to the washer, they are inverted to ensure efficient processing. After negative-ion filtration and purification of the air inside the bottle, any residual dirty air that could contaminate the equipment is discharged.
Applicable Bottle
Filling Head
Production Capacity
Features:
The TR-FZCX Bottle Washing and Rinsing Machine is suitable for both glass and plastic bottles, and can handle large-sized bottles, not just those with fixed dimensions. Its user-friendly design allows users to easily switch to other bottle types without manual adjustments. Meanwhile, the machine's transparent cabinet-style cover allows direct observation of the cleaning process, ensuring quality and safety. After completing the automatic bottle cleaning process, the bottles are conveyed to the filling and packaging stages.
1. Cleaner Dust Removal Effect: The inverted structure uses air flow to blow back inside the bottle, effectively removing accumulated dust. The dust removal effect is superior to that of traditional pulse dust removal. It has high dust removal efficiency, reaching 85% to 95% for particles larger than 5μm, and also has excellent capture ability for fine dust.
2. Significantly Reduced Maintenance Costs: The structure is simple and has no rotating parts, resulting in maintenance costs only 1/5 of electrostatic precipitators.
3. Environmental Friendliness And Economic Efficiency: Dry dust removal is convenient for recovering valuable dust and does not produce wastewater.
Application:
For Cosmetics and Pharmaceuticals: This includes lotions, perfumes, bath oils, hand soaps, and shampoos.
For Household and Industrial Products: This includes dishwashing liquids, dish soaps, laundry detergents, cleaning agents, disinfectants, and bleaches.
Samples:
Specification:
| Blow and Suction Head | 6 |

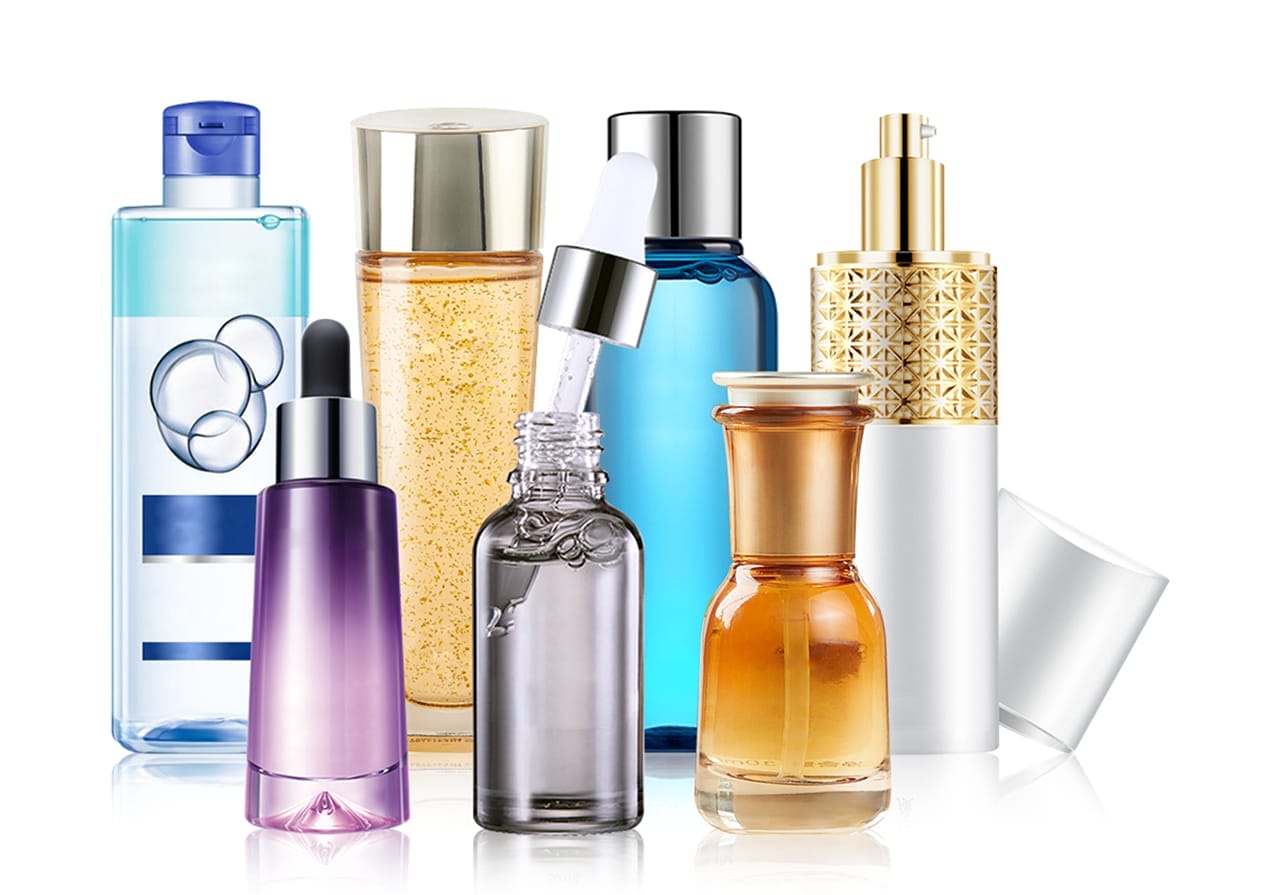

| Applicable Bottles | Φ 65 - 190mm (without cover) For round bottles / square bottles / irregular-shaped bottles |
| Production Capacity | ≥60 bottles/min * Actual production capacity may vary depending on product size, packaging material type, material properties, etc. |
| Air Operated Resource | 0.6 ~0.8Mpa (Use dry and clean compressed air) |
| Air consumption | 200L/Min |
| Voltage | AC 220V 50Hz |
| Power | 3kW |
| Overall Dimensions | 2000*800*1300mm(L*W*H) |
Function:
1.European-style lift-top design, easy to operate, and with a stylish and grand appearance.

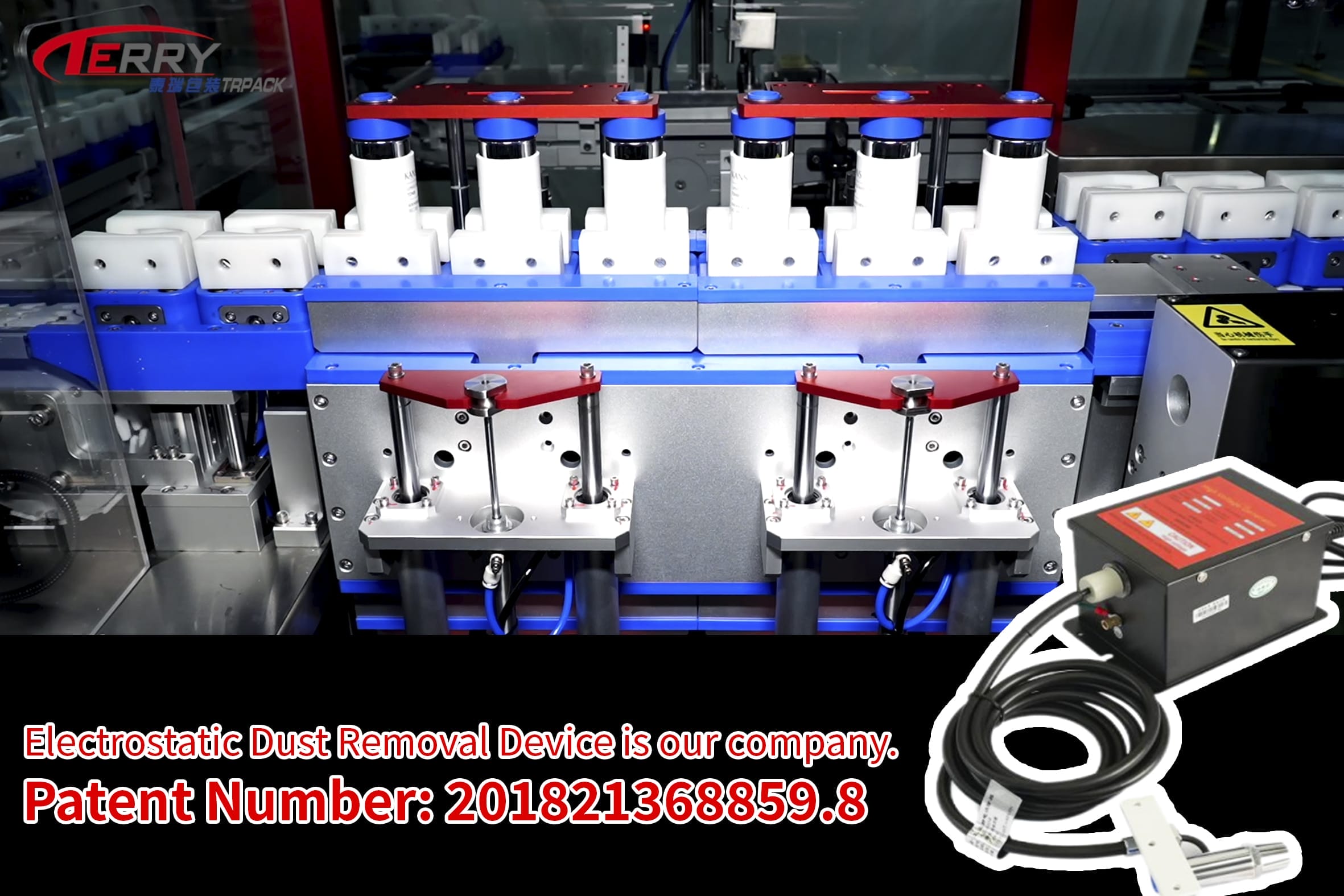

2.Six sets of negative ion generators and an electrostatic dust removal system.
3.The operation is simple and the adjustment is convenient. Just a slight adjustment is enough to quickly switch production.

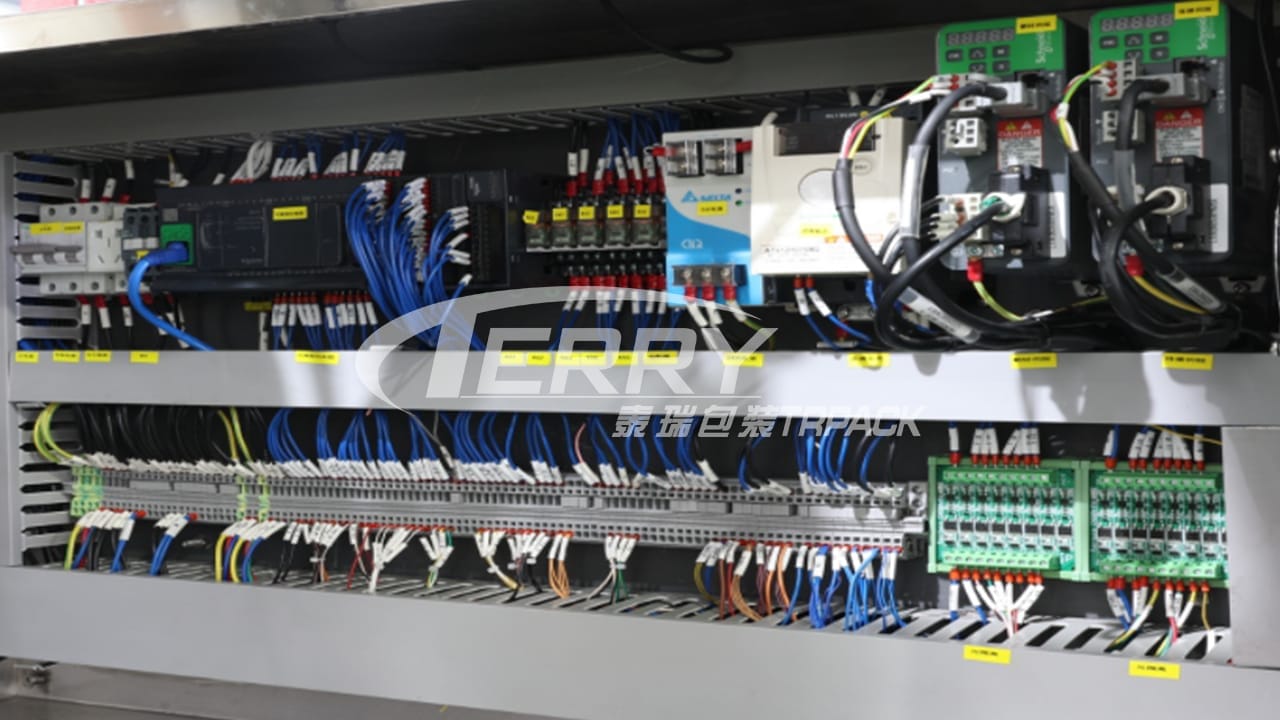

4.TRPACK's production line adopts the Huacon electric control system, which has strong compatibility and ensures quality. In the market, the electrical brands of our competitors for the entire production line are diverse, with poor compatibility and no unified standards, making the quality unreliable.
