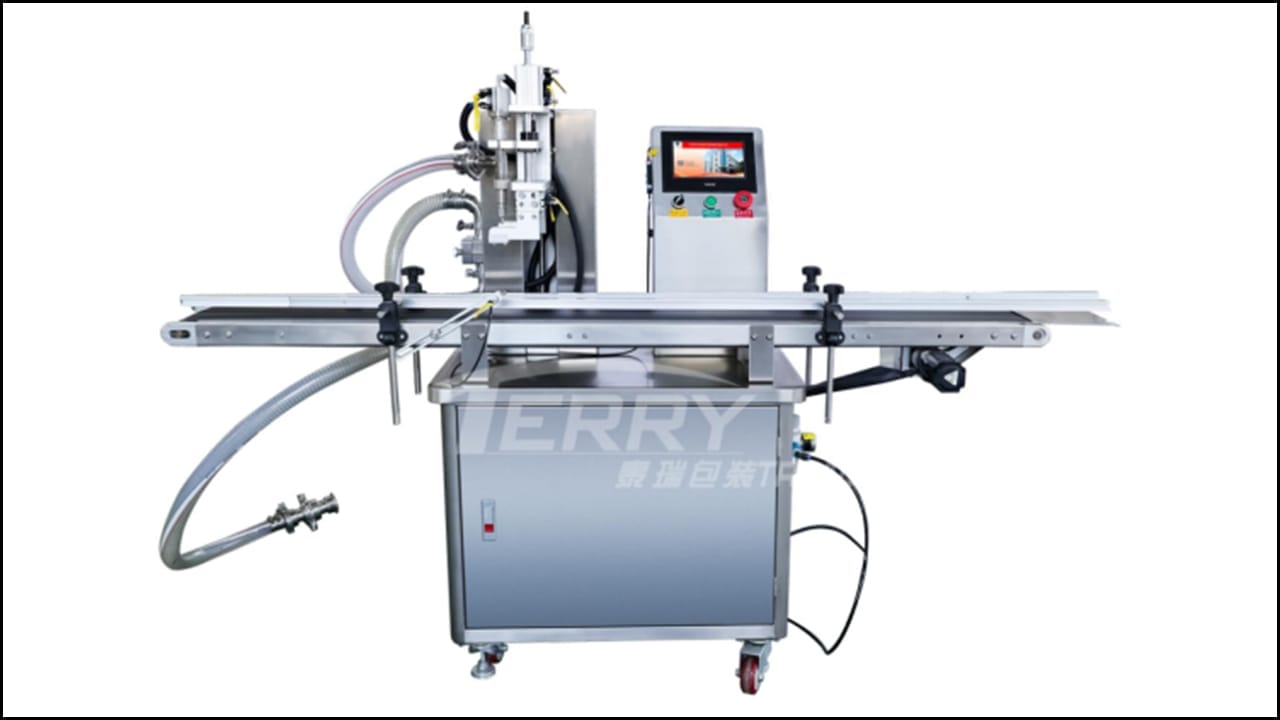

TR-GLGZZ-1 Automatic Single Head Gear Pump Filling Machine
TRPACK’s TR-GLGZZ-1 Automatic Gear Pump Filling Machine is the Single-head high-speed filling machine is widely applicable to industries such as cosmetics, food, medicine, and chemical raw materials. It can be used for various creams, lotions, face creams, ointments, essential oils, laundry detergents, shampoos, body washes, semi-fluids, honey, and various viscous materials. This equipment adopts the magnetic gear pump filling method. The cleaning process is simple, the application range is wide, it is controlled by servo motors, stable without faults, it can be equipped with an automatic feeding function, and has a long service life.
Applicable Bottle
Filling Head
Filling Volume
Features:
1. The bottle-feeding belt is motorised and the filling is carried out intermittently.

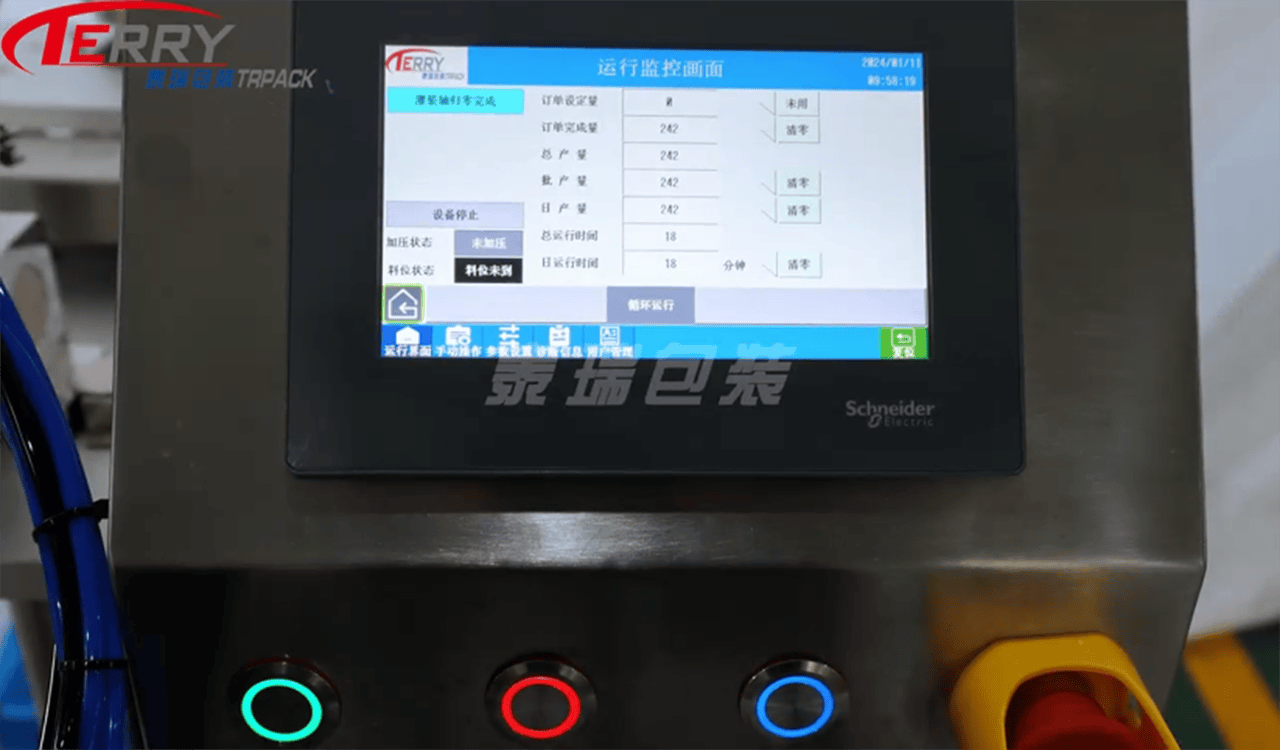

2. The operation interface is simple and convenient. Both the production capacity and the filling volume can be adjusted via the touch screen.
3. The bottles are positioned using a carding method for filling.
4. The gear pump is controlled by a servo motor for filling and the dosage can be set on the touch screen with one click.
Application:
For Cosmetics and Pharmaceuticals: This includes lotions, perfumes, bath oils, hand soaps, and shampoos.
For Household and Industrial Products: This includes dishwashing liquids, dish soaps, laundry detergents, cleaning agents, disinfectants, and bleaches.
Samples:
Specification:
| Filling Head | 1 |
| Applicable Bottle Type | Φ30mm - 100mm; Bottle Height:30-220mm Customization Accept |
| Production Capacity | ≥50 bottles/min (For example, 50g) The specific production capacity depends on the material characteristics, packaging material conditions (inner diameter size of the bottle mouth), and the operator's proficiency. |
| Filling Accuracy | ±0.5% |
| Gear Pump | One circle is 40ml, Maximum flow rate is 2L/s (depending on the viscosity of the material) |
| Voltage | AC 220V 50Hz |
| Total Power | 1.8KW |
| Air Consumption | 200 L/min |
| Overall Dimensions (Main Machine) |
1300*700*1800mm (L*W*H) |
| Overall Weight | 150 KG |
