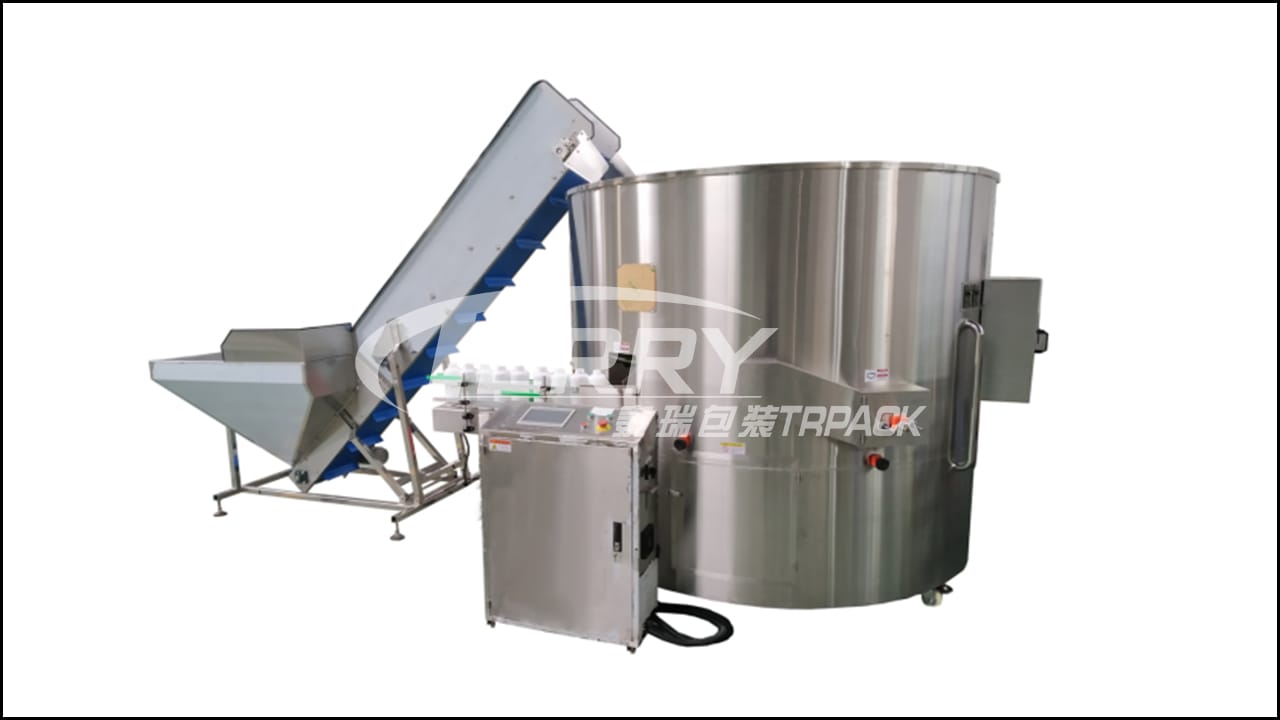

TR-LP Series Automatic 5L Bottle Unscrambler with Bottle Elevator
The LP Series Automatic Unscrambler with Bottle Elevator (for 5L Bottle) is used for organising polyester bottles.
The bottles, which are in a messy state, are sent to the bottle storage ring of the sorting machine by a lifting mechanism. The bottles enter the internal space of the bottle frame because of the push force of the rotating disc. This makes them self-align. The bottles are arranged with their mouths facing up and upright using a bottle-flipping and -guiding device. They are then sent through an air-suction bottle conveying system to the next stage of the process. The body of this machine is made of high-quality stainless steel, and other parts are made of non-toxic and durable materials. The electrical and pneumatic systems on the bottle unscrambler use imported components. The whole process is controlled by computer programming. So, the equipment rarely breaks down and it’s very reliable.
Applicable Bottle
Filling Volume
Production Capacity
Application:
For Cosmetics and Pharmaceuticals: This includes lotions, perfumes, bath oils, hand soaps, and shampoos.
For Household and Industrial Products: This includes dishwashing liquids, dish soaps, laundry detergents, cleaning agents, disinfectants, and bleaches.

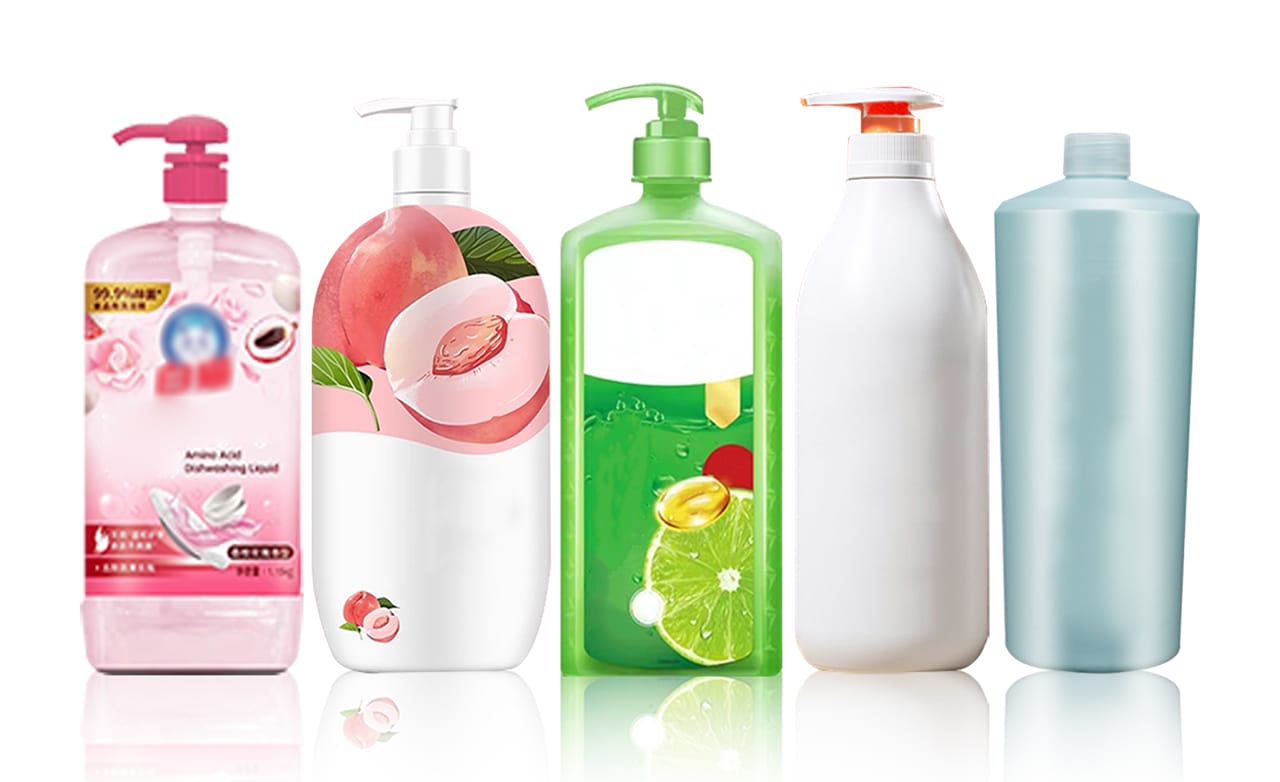

Samples:
Specification:
| Applicable Bottles | 1L - 5L for Round Bottles/ Flat Bottles / Square Bottles/Tetragonal Bottles (PET Material) |
| Filling Volume | 5000ml |
| Production Capacity | ≥120 bottles/min |
| Power Supply | AC 220V, 50Hz, power is about 3KW |
| Air Operated Resource | 0.6 ~0.8Mpa (Use dry and clean compressed air) |
| Air Consumption | 400L/min |
| Overall Dimensions | Main Machine: Ø2400mm * Height Lifting Elevator: 2700mm×1300mm×2700mm（L×W×H） (Customized accept non-standardly according to the site requirements) |
| Overall Weight | About 1850Kg |
Function:
1. PLC Intelligent Control System: Advanced functions, simple operation, compact structure. The entire machine adopts a technologically mature PLC control system, ensuring stable and high-speed operation.
2. Flexible Manual Adjustment Design: The manual hanging device adjustment offers better compatibility compared to similar devices in the industry.
3. Patented Position Display Technology: The equipment holds multiple patents. It is equipped with a position display for different bottle types, which can be adjusted according to the bottle type. This is unique in China.
4. Humanized Touch Screen: The operating system is controlled by a touch screen, which is easy to operate, practical and highly efficient.
5. Imported Electrical Components: Imported low-voltage electrical components, with stable performance and extremely low failure rate.
6. Automatic Alarm & Full-Container Stop: Functions include automatic shutdown when the container is full and an alarm to indicate equipment abnormalities.
7. Smart Air Supply & Bottle-Jam Detection: When in use, the connection device has the functions of air supply or bottle-blocking alarm. After processing, it will automatically start.
8. Compact Size with High Efficiency: Compared with traditional bottle unscrambler, it is smaller in size and faster in operation.
9. Wide Application & Strong Adaptability: It has a wide range of applications, can be used in multiple ways and has strong adaptability!
10. Adjustable Elevator Docking System: The elevator can be adjusted to different positions according to the site conditions, greatly facilitating the connection and alignment of the production site. After the bottles are discharged, they can be directly conveyed for connection or transported for connection.
