TR-XG-2S Automatic Inner Plug Placing and Pressing Machine
The TR-XG-2S Capping Machine is the latest integrated tracking servo motor capping machine from TRPACK. The equipment adopts the independent tracking form of servo cap securing. The entire machine consists of the cap-securing mechanism, the conveying mechanism and the control system. The overall structure of the machine is simple, easy to adjust, has high production efficiency and strong versatility.
Application:
1. Convenient and Durable: The clamping belt employs a servo motor-driven one-piece molded belt for long-lasting durability, ensuring bottles remain stable during capping. Changeovers require only adjusting the bottle clamping belt spacing for quick and convenient operation.
2. Tracking Capping: The capping manipulator picks up the cap and completes the capping function while tracking the bottle's movement.
3. No Damage, Cap-friendly Design: Silicone soft-grip capping wheels with servo motor-controlled adjustable torque, suitable for high-torque capping.
Samples:
Features:
1. High-integration design, saving space and manpower.
Integrated structure: All functions such as unseating, pressing, and conveying are integrated into one device, reducing the number of equipment and the floor space, especially suitable for production lines with limited space. Automated operation: Only one operator is needed to complete processes such as loading materials, guiding materials, and parameter setting, significantly reducing reliance on manual labor.
2. High efficiency and high precision.
Multi-head synchronous operation. Through the multi-head design, multiple workpieces can be processed simultaneously, significantly enhancing production efficiency.
Precise control: Utilizing a CNC system, the feeding length, speed, and synchronization parameters can be precisely set, ensuring stable product quality.
3. High Safety and Reliability.
Safety protection system: Equipped with guards, safety protection mechanisms, etc. In case of abnormal situations (such as bottle tipping, thick bottles), the machine will automatically stop, and the operation panel will display the problem location, facilitating quick troubleshooting."
4. Wide Applicability and Economic Durability.
Wide applicability of bottle types: By adjusting the potentiometer knobs to change the filling and capping speeds, it can adapt to the needs of different bottle types.
Economical and durable: Made of high-quality stainless steel, it is easy to disinfect and clean, extending the equipment's service life.
Specification:
| Production Capacity | ≥ 60 bottles/min (Using a 500ml shampoo product as an example) |
| Applicable Bottle Type | According to the customer's packaging material customization request. |
| Air Operated Resource | 0.6 ~0.8Mpa (Use dry and clean compressed air.) |
| Voltage | AC 220V; 50Hz |
| Total Power | 3KW |
| Air Consumption | 500 L/min |
| Overall Dimensions (Main Machine) |
1200mm*1000mm*2000mm (L*W*H) |
| Overall Weight | 600 KG |
Function:

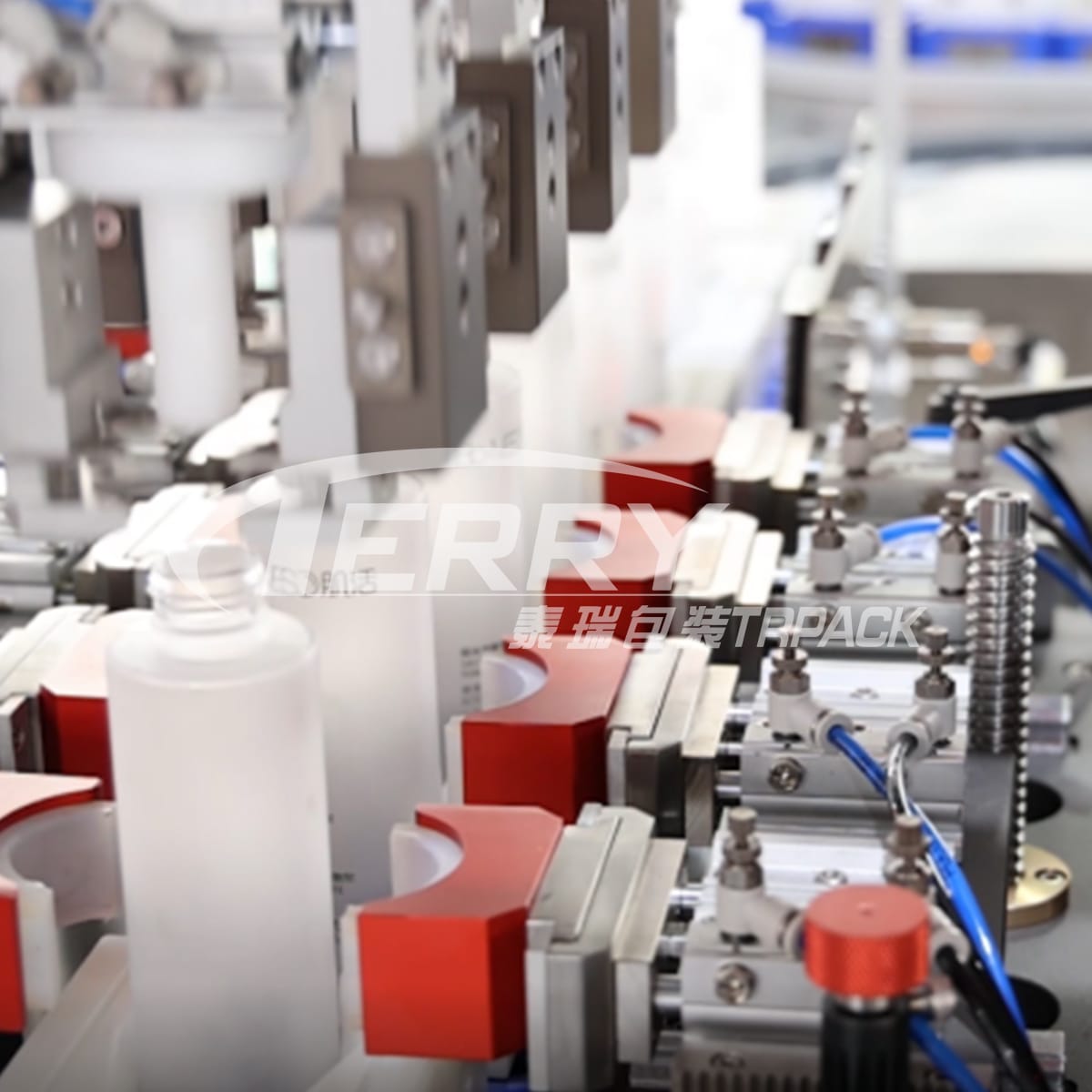

1. 4-set automatic pressure-taking inner plug with clamping mechanism.

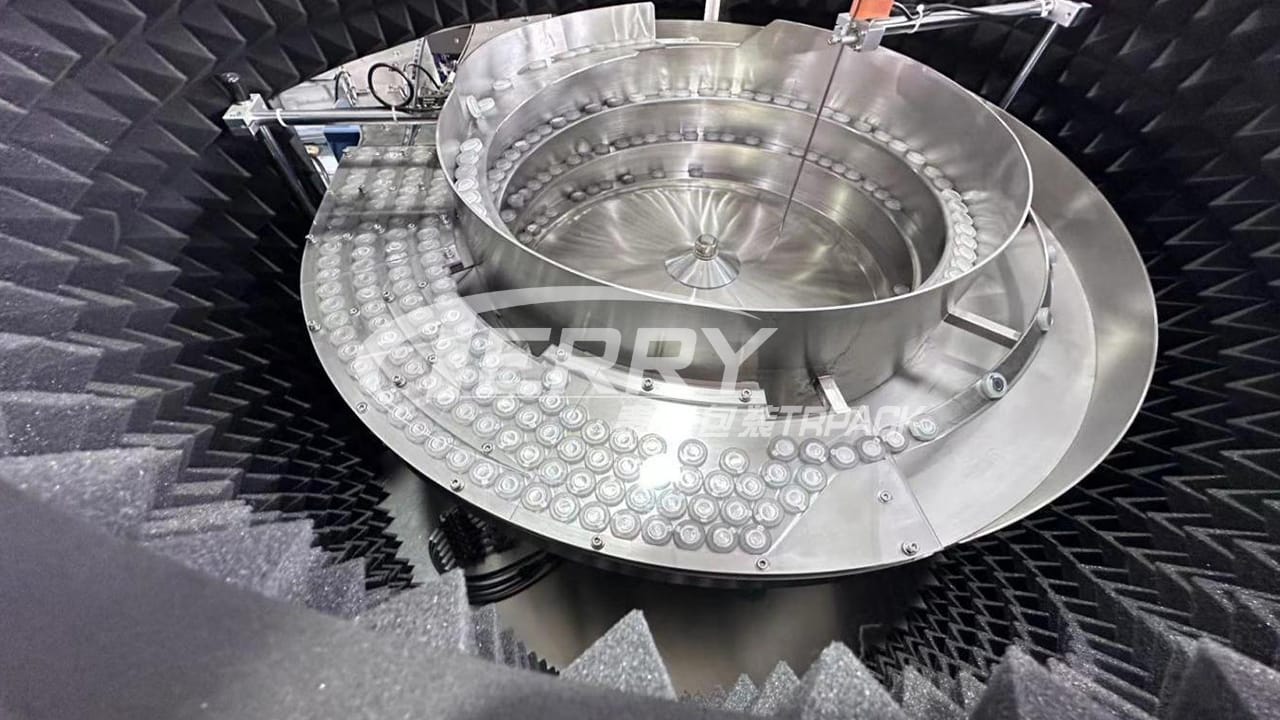

2. Vibratory Bowl Sorter.Customization accepted by cap size, makes the inner lid arranged orderly.
3. Vibrating bowl sorter connected to four conveyor belt tracks.
