TRF-100 Type Fully Automatic Tube Filling and Sealing Machine
The TRF-100 Tube Filling and Sealing Machine from TRPACK is an automatic, integrated packaging machine designed to seal plastic and aluminum-plastic composite tubes used in the cosmetics, skincare, hair care, household chemicals, pharmaceutical, and other specialized industries. Primarily for packaging and sealing paste-like, cream-like, and viscous fluid materials.
It has a simple, compact structure and requires minimal floor space. This machine is equipped with a programmable controller and can automatically perform tube supply, label recognition, filling, tail cutting, sealing, pressing, and product output.
This machine has a high level of safety, stable operation, and precise positioning. The parts that come into contact with materials are made of 316 stainless steel, which complies with GMP requirements.
Application:

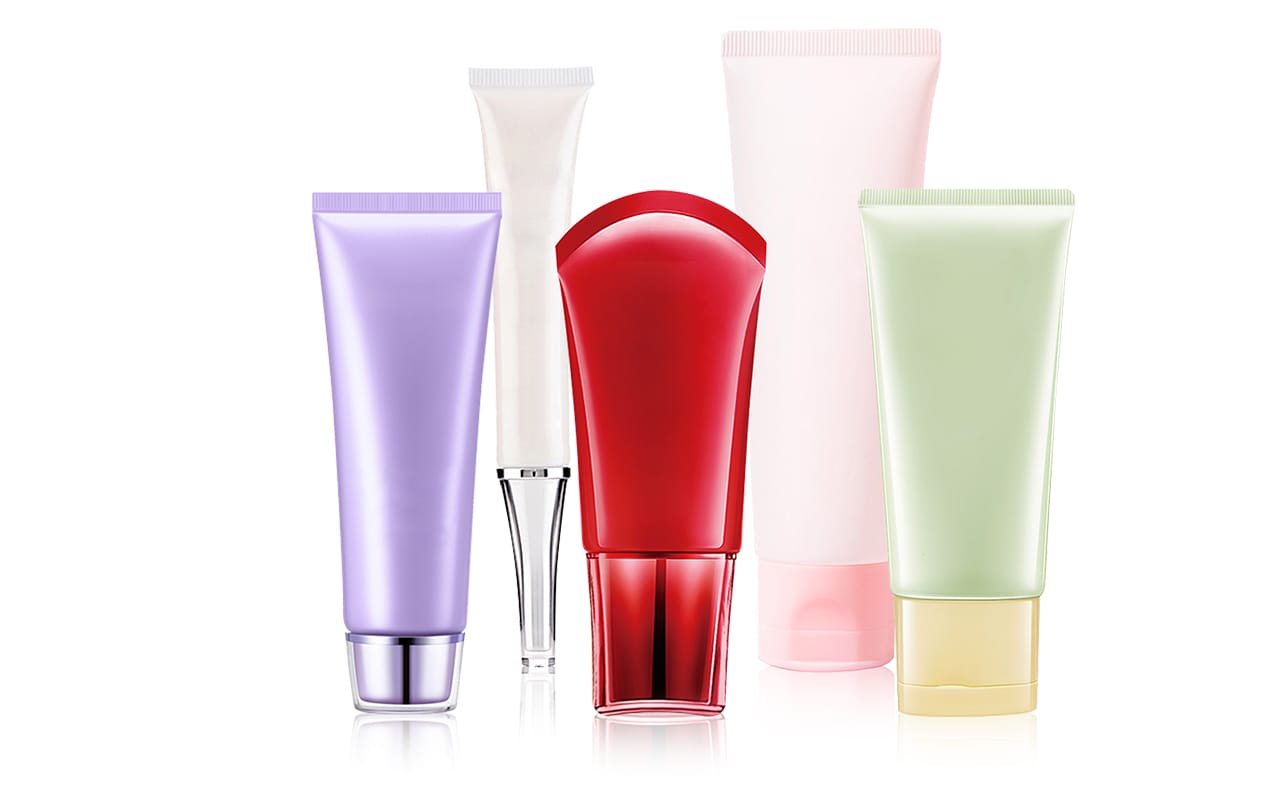

Beauty Cosmetic, Personal Care, and Household Products: Cosmetics, facial cleansers, hand creams, toothpaste, etc.
Pharmaceutical Industry: Ointments, creams, liniments, and lotions.
Other Industrial Fields: Adhesives, pastes, gels, viscous fluids, and industrial products.
Samples:
Features:
1. It is widely used in the cosmetics and personal care industries and is suitable for filling products within the range of 2 ml to 400 ml.
2. The filling components are easy to disassemble. The hopper valve body, piston, and injection head can be quickly disassembled without tools for easy cleaning, disinfection, and sterilization.
3. This machine's rotary valve is designed as an integral unit, making it easy to disassemble and clean.
4. The upper tube simultaneously performs the pre-pressing function, solving the problem of an unstable upper tube caused by differences in customers' packaging materials.
5. Use elastic, tensioned tube cups to ensure consistent sealing height.
6. The color-coded detection tube cup automatically rotates for precise positioning. No tubes will be filled or sealed if they are not in place.
7.The injection system uses a mechanical cam drive method (with corresponding cam models that change according to the actual filling volume) to ensure consistent filling quantities.
8. The application range is wide and suitable for filling in the range of 2 ml to 400 ml.
9. The tube is equipped with imported hot air heaters. The inner wall of the tube is sealed with hot air, while the outer wall is cooled by circulating cold water. This ensures a beautiful sealing effect.
10. The automatic feeding machine is suitable for the automatic feeding of dairy products and creams. Combined with ultrasonic level detection, it enables automatic feeding.
Specification:
| Filling Volume | 2 ml–400 ml one piece (adjustable) The filling capacity range may vary depending on the properties of the raw materials and the feeding device. |
| Filling Accuracy | ≤±0.5% The measurement accuracy varies according to the characteristics of the materials, the filling volume, and the feeding device. |
| Filling Viscosity | 60000CPS(Refer to the standard piston pump as the reference) |
| Applicable Tube Type | Plastic tubes, aluminum-plastic composite tubes。 Φ13-Φ50mm 70(excluding cap) - 230mm (including cap) |
| Production Capacity | 60pcs/min (taking 50ml product as an example) * Actual production capacity may vary depending on product size, packaging material, material properties, etc. |
| Material Bin Capacity | 45L |
| Air Operated Resource | 0.6 ~0.8Mpa (Use dry and clean compressed air.) |
| Air Consumption | 50L/min |
| Power Supply | AC 380V 50Hz |
| Total Power | 6KW |
| Overall Dimensions (Main Machine) |
1920*1083*2100mm(L*W*H) |
| Overall Weight | 700 KG |
Function:

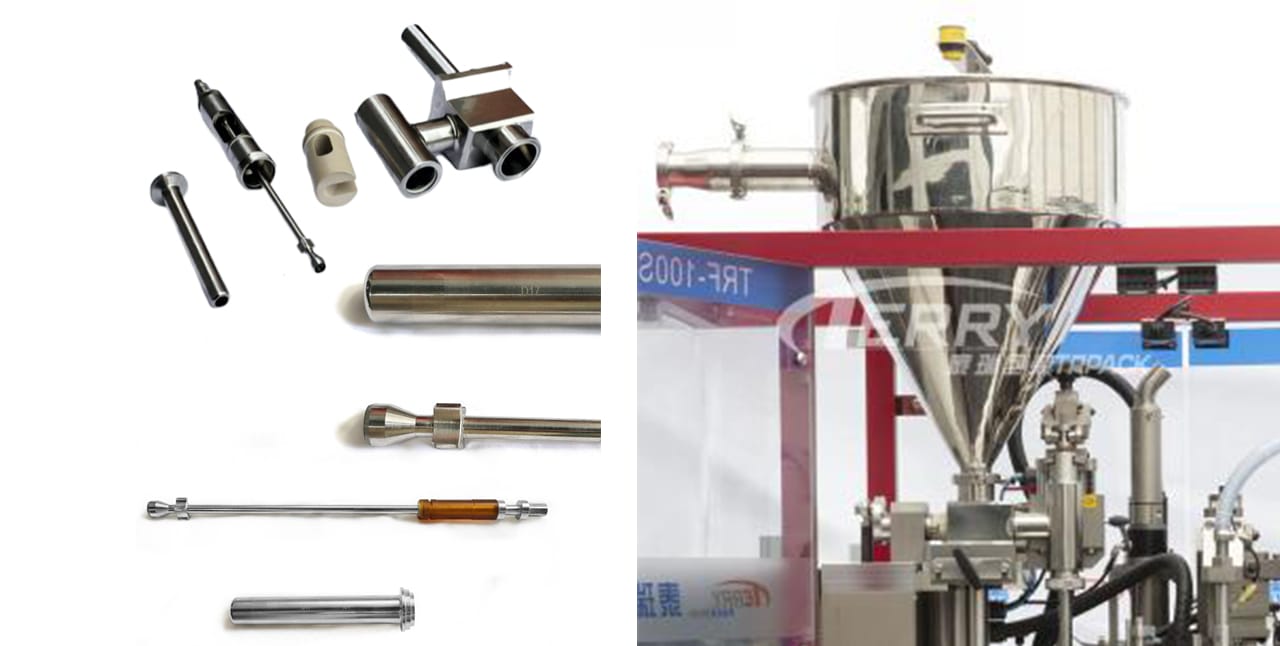

1. Quickly changeable filling assembly.

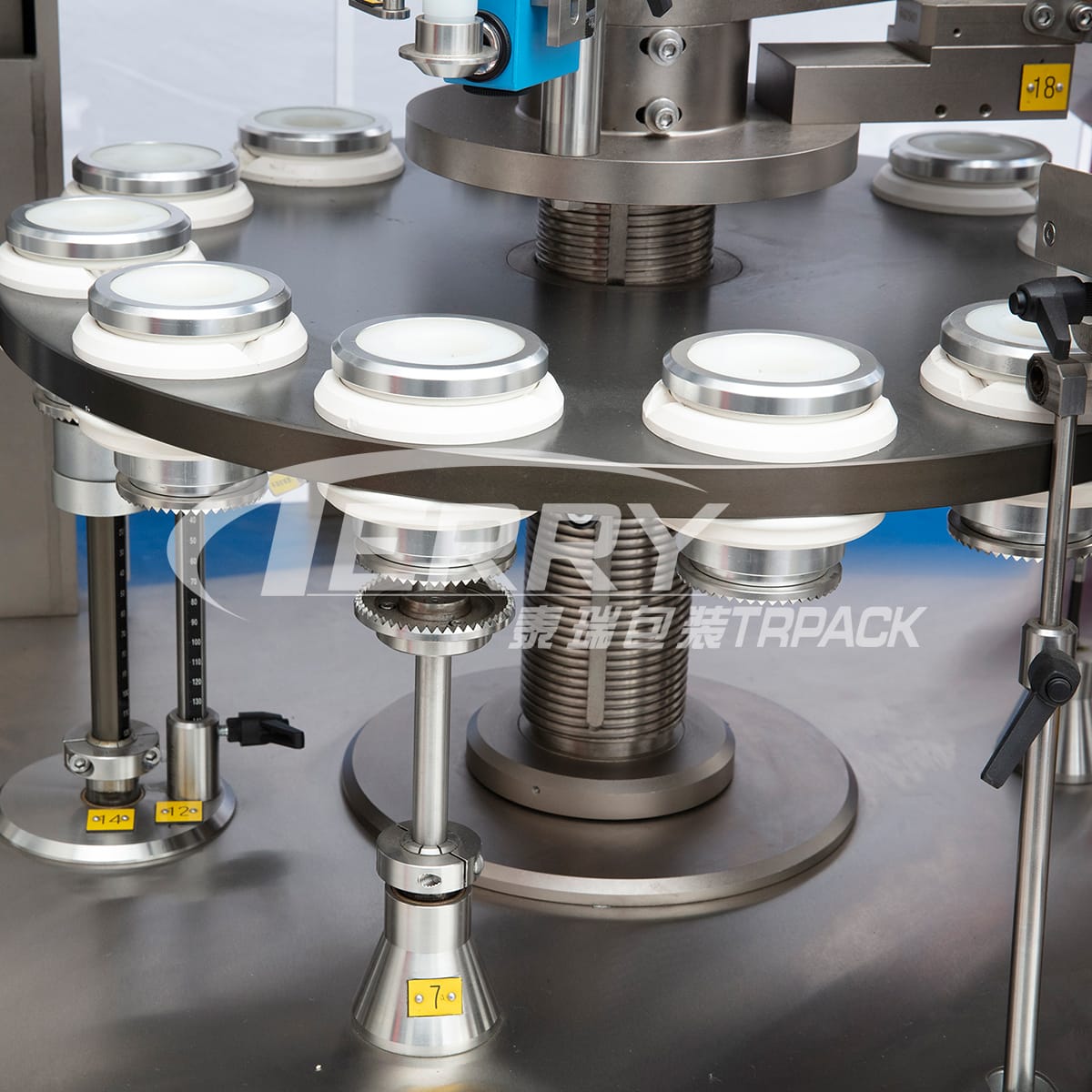

2. Use elastic and tensioned tube cups to ensure consisten sealing height.

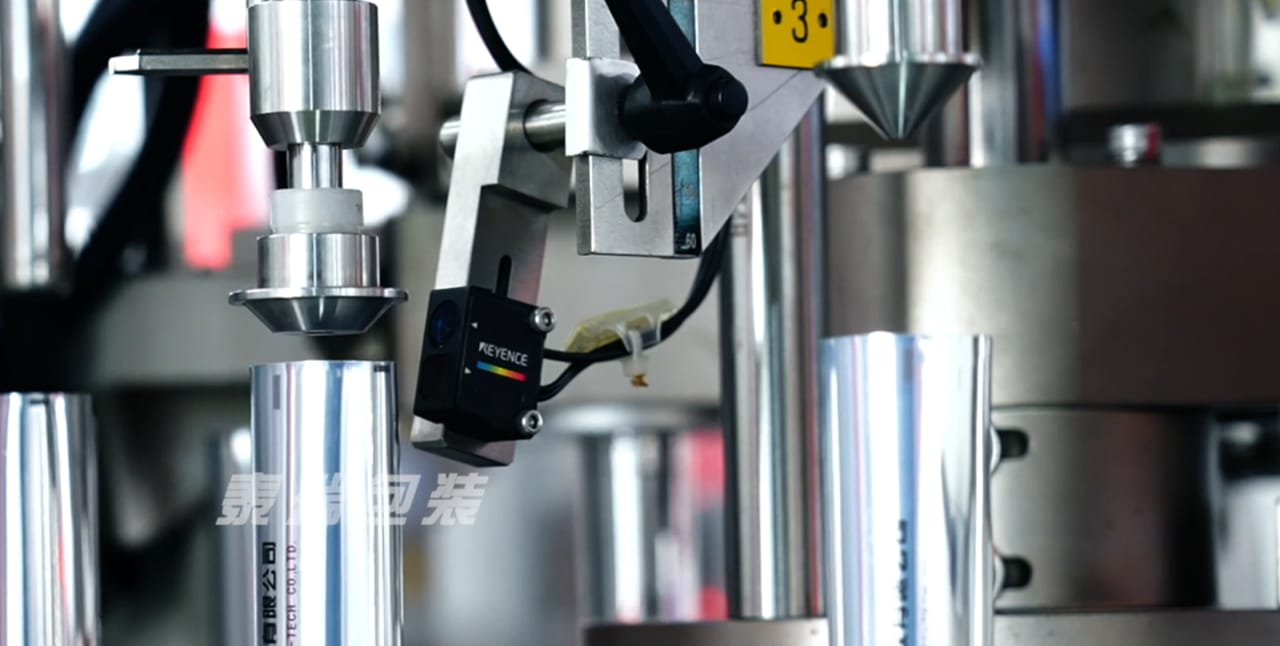

3.The photoelectric sensor inspection tube cup rotates automatically for precise positioning. No tubes will be filled or sealed if they are not in place.

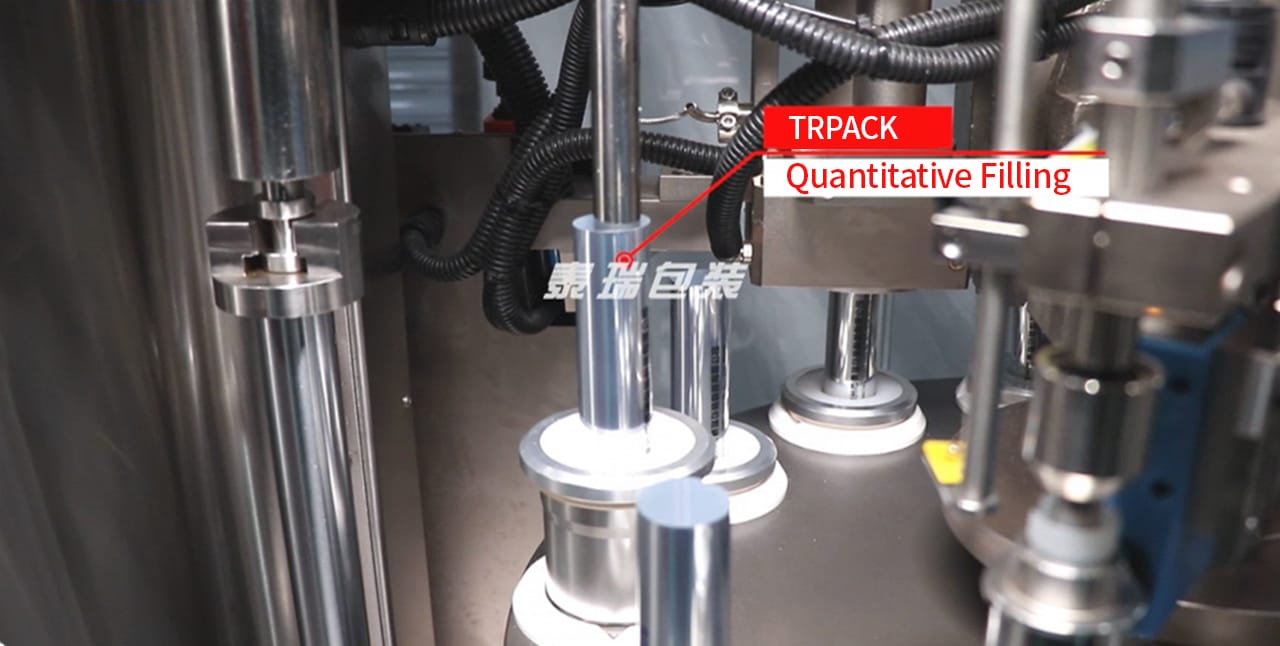

4.The injection system uses a mechanical cam drive (with cam models adjusted to match the actual filling volume), ensuring stable filling volume.

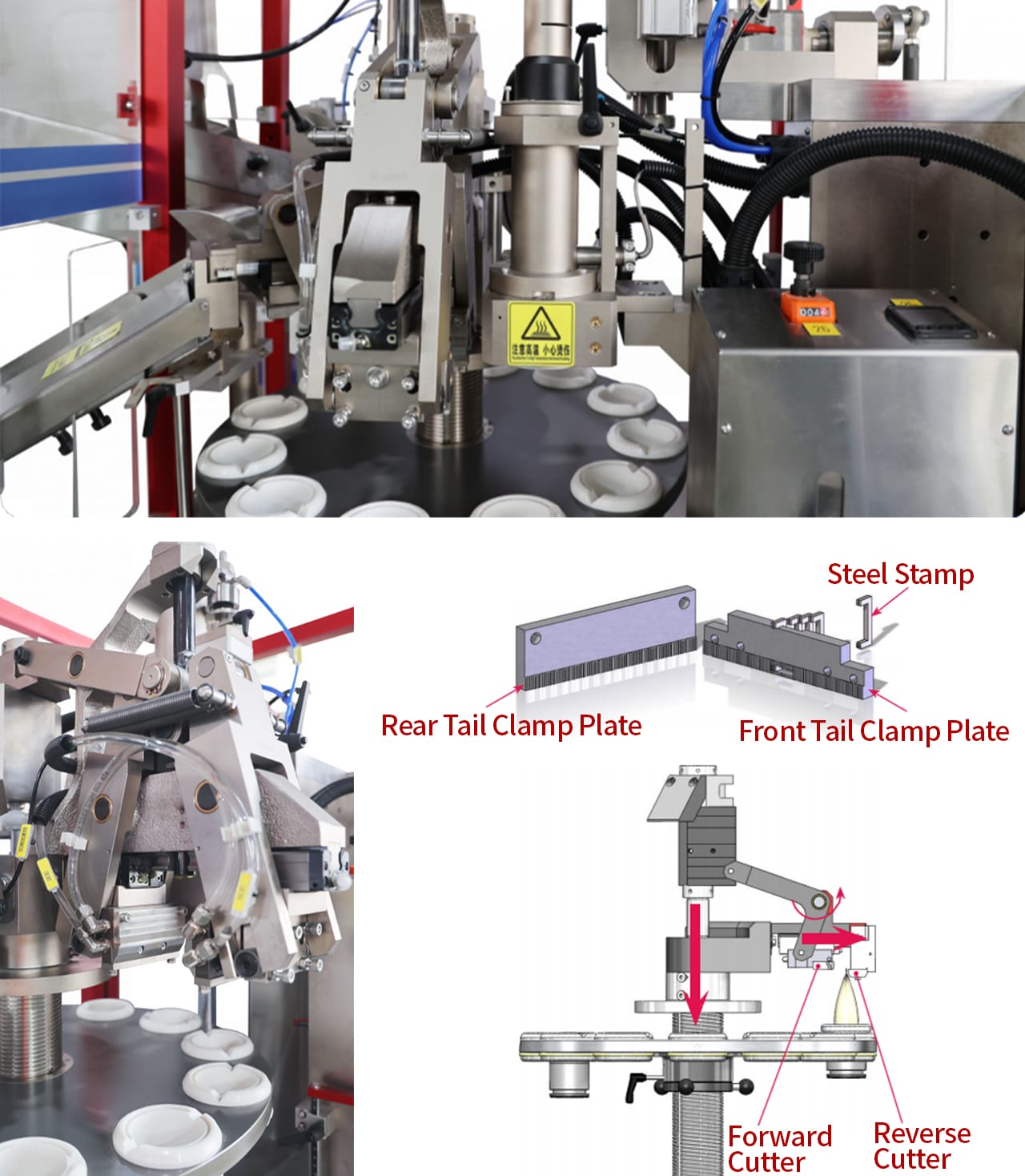

5. The tube is equipped with imported hot air heaters. The inner wall of the tube is sealed with hot air, while the outer wall is cooled by circulating cold water. This ensures a beautiful sealing effect.
After hot air sealing, the batch number can be printed on either side or both sides. After the characters are pressed and coded, the end is cut off.
