UV Laser Marking Machine
This UV laser marking machine utilizes a high-energy 355 nm ultraviolet wavelength laser beam. With this specialized hardware design, the laser marker accommodates diverse application requirements across numerous industries and product types. It delivers clear, aesthetically pleasing, high-quality laser markings on surfaces including food, tobacco products, pharmaceuticals, electronic devices, chemical packaging, building materials, painted metal surfaces, glass, metal, plastic, and polymer materials. Key advantages include a small focal spot, minimal thermal effects, and low deformation.
Application:
Suitable for bottle coding/marking.
Samples:

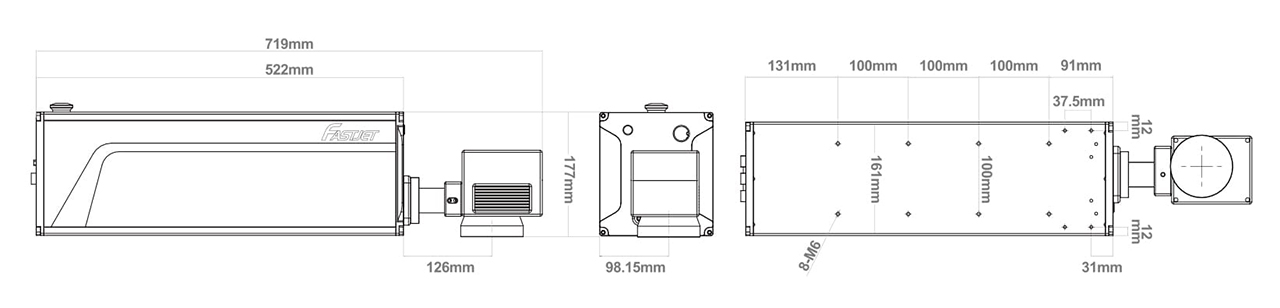

Specification:
| Laser types and characteristics： | - Laser tube: Solid-state ultraviolet laser |
| - Wavelength: 355 nanometers | |
| - Cooling system: Water cooling（Water cooling system included as standard.） | |
| Application/Substrate： | Flexible PCB boards, plastic materials (such as PE, PVC, PP, PS, POM, PC, acrylic, nylon, etc.), metal materials (such as stainless steel, aluminum, gold, platinum, silver, titanium, brass, etc.), wood materials (such as medium-density fiberboard, plywood, and fiberboard), and glass.* |
| speed： | - Galvanometer marking speed: up to 9000 mm/second* |
| - Production line speed: up to 4600 mm/second (15 feet/second) * | |
| Physical properties： | - Ambient temperature：5-40°C (41-104°F) |
| - Environmental humidity：10%-90%，No condensation | |
| - Electrical requirements：240 VAC, ~50/60 Hz, 1 PH, 0.50 kW |
