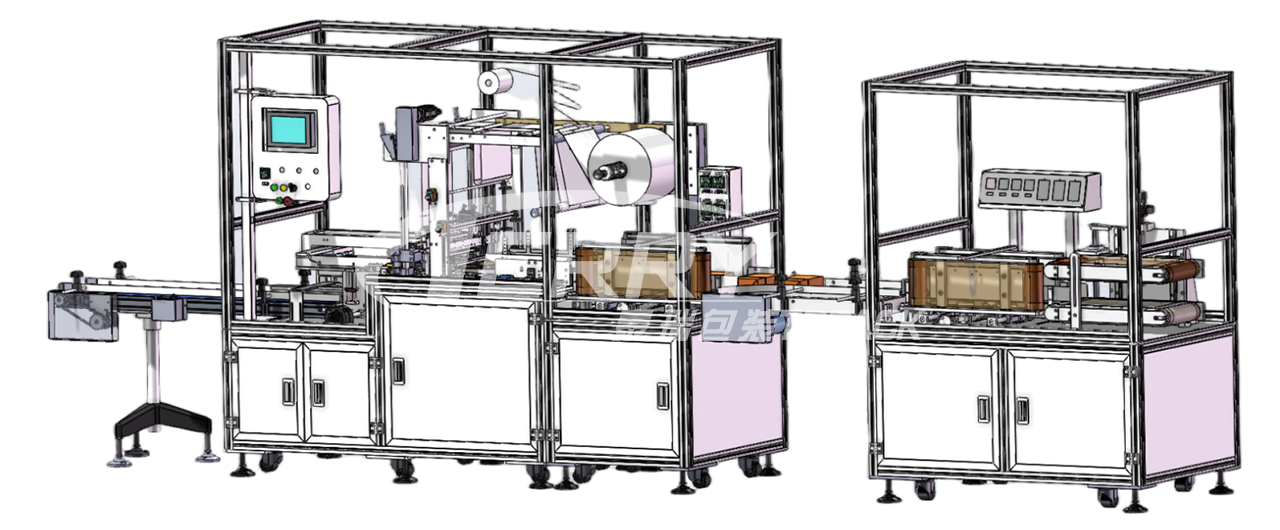

YZ350 3D Cellophane Overwrapping Machine
The YZ350 type is a high-speed three-dimensional transparent film cellophane packaging machine. The double-stand design is sturdy and reliable, and the inner frame ensures the stability of the equipment foundation with a high safety factor. The stainless steel panels on both sides make the installation components on the panels stable and reliable; the contact part of the middle box uses super wear-resistant chessboard fabric that will not scratch the box and helps prevent film running.
Application:
This equipment is specifically designed for manufacturers of cosmetics, medicines, food, tea, stationery, electronic cigarettes, and hygiene products, and is used to package boxed products.
Samples:
Specification:
| Packing Speed | 50packs/min ～ 70packs/min |
| Packing Dimensions (mm) | L(40～280）W(30～200）H(19～90） |
| Input Power | Three-phase five-wire 380V 50Hz |
| Total Power | 10.5KW/H |
| Heat sealing temperature | 110℃～180℃ |
| Air Operated Resource | Pressure ≥ 0.6 Mpa Exhaust volume: 30 L/min |
| Intake Pipe Diameter | Φ8mm |
