Why Tracking Capping Technology Is Redefining Modern Packaging Lines?
In today’s high-throughput packaging environments—particularly in cosmetics, personal care, household and industry cleaning, daily chemicals, and pharmaceutical liquids—traditional intermittent capping machines are increasingly becoming the bottleneck of the entire production line.
A servo tracking capping machine (also referred to as a continuous motion capping machine or tracking capping system) addresses this challenge by enabling non-stop bottle movement, synchronized torque control, and high-precision sealing—all without sacrificing stability or cap integrity.
This article provides a technical, application-oriented analysis of the full automatic tracking capping machine, explaining how it works, how it outperforms conventional solutions, and why it has become the preferred choice for manufacturers seeking higher OEE, faster changeovers, and scalable automation.
What Is the Automatic Servo Tracking Capping Machine?
Fully automatic servo-tracking capping machine is a linear capping system that completes the entire cap placement and tightening process while the bottles remain in continuous motion.
Unlike stop-and-go capping equipment, the tracking system uses multi-axis servo control to track the bottle’s movement in real time. This enables the capping head to apply precise vertical pressure and rotational torque during forward motion.
Core Components
- Servo-driven bottle clamping conveyor
- Reciprocating servo tracking capping module
- Automatic cap sorting and feeding system
- PLC + HMI electrical control system
- Rigid stainless-steel machine frame
This integrated structure enables high-speed continuous capping, even on unstable or lightweight containers.
The capping head achieves:
- Tracks each bottle horizontally
- Moves vertically to engage the cap
- Applies controlled rotational torque
- Returns to the cap pick-up position
This enables high-speed, continuous, and stable bottle capping without interrupting line flow.
Key Differences Between Tracking and Traditional Capping Machines
Traditional capping machines rely on intermittent indexing, forcing bottles to stop before tightening. This leads to:
- Lower production speeds
- Higher mechanical stress
- Inconsistent torque
- Reduced line efficiency
In contrast, a continuous motion tracking capping machine provides the result is significantly higher throughput and lower downtime.
From a production engineering perspective, the difference between these two technologies is fundamental.
To illustrate the generational gap more clearly, the table below compares key performance metrics between traditional intermittent capping machines and tracking capping machines:
Tracking Capping Machine vs. Traditional Capping Machines. An Efficiency Revolution
| Comparison Item | Tracking Capping Machine | Traditional Capping Machine |
| Capping Working Mode | Continuous Motion: Continuous tracking capping, synchronous tracking. | Intermittent Stop:Intermittent capping requires a pause after the bottle reaches its position. |
| Conveyor Status | Never Stops:The conveyor belt operates at a constant speed, ensuring seamless integration between preceding and subsequent processes. | Stops During Capping:Frequent starts and stops are required, which affects the overall line efficiency. |
| Cap Handling | Automatic Capping Sorting, and Synchronized Cap Gripping. | Manual or Semi-auto |
| Capping Speed | 60–100 bottles/min (Single Capping Head) | 16–32 bottles/min (Dual Capping Station) |
| Line Integration | Excellent (linear layout) | Limited |
| Production Efficiency | High. Compatible with high-speed filling lines | Low to medium. Impacting overall line capacity |
| Torque Control | Precision Adjustable: Servo Motor + Torque Closed-Loop | Uneven Tension: Mechanical friction plates are prone to wear. |
| Change Production | Mechanical components must be replaced manually, which takes over 30 minutes. | One-click recall saved templates. Effortlessly complete tasks within 5 minutes. |
| Applicable Caps and Bottles | In addition to universal screw caps, compatible with various press-on caps, child-resistant caps, tamper-evident caps, mist spray caps, pump caps, duckbill caps, etc. | Standard bottles and common round caps only |
It is evident that by eliminating bottle dwell time, the continuous motion follw up capping machine significantly boosts production efficiency while reducing mechanical stress on both bottles and caps.
How Does a Tracking Capping System Work?
The working principle of a servo tracking capping system follows a synchronised motion sequence:
- Bottles enter the clamping conveyor and remain stabilized.
- Caps are sorted and delivered by the automatic cap feeder.
- The servo capping head grips a cap and moves to a standby position.
- Sensors detect the bottle and activate tracking mode.
- The capping head moves at the same horizontal speed as the bottle while descending vertically.
- Servo torque tightens the cap with precision control.
- The head retracts and returns to collect the next cap.
This coordinated horizontal and vertical motion allows continuous sealing without stopping the conveyor. It’s the technical core of the tracking capping machine and the key to its stable, high-speed sealing.
Core Performance Advantages
1. High-Speed Continuous Operation
tracking capping eliminates waiting time between bottles and allows production lines to operate at stable high speed. This is ideal for integrated filling and capping lines.
2. Precision Servo Torque Control
Torque is digitally adjustable, ensuring:
- No bottle deformation
- No cap damage
- Consistent sealing quality
This makes the machine suitable for plastic, aluminum, and specialty closures.
3. Intelligent PLC + Touchscreen Operation
Operators can independently perform:
- Parameter memory for multiple bottles and caps;
- One-button switching between production specifications;
- Monitoring alarms and production status;
- Rapid troubleshooting.
4. Automatic Cap Handling & Safety Logic
Built-in control logic ensures:
- No bottle, no capping
- No cap, automatic stop
- Reverse or defective caps are rejected
These functions improve finished product quality and reduce waste.
Structural & Design Features
- Fully Servo-Driven sSystem: height adjustment, tracking speed, and torque are all servo-controlled.
- Quick Changeover Design: Quick-change cap molds for different SKUs
- Recipe Storage: Parameter memory for repeated production runs .
- Stainless Steel Construction: hygienic, corrosion-resistant, industrial-grade durability.
This makes the machine particularly suitable for frequent SKU changes and multi-product manufacturing environments.
Application Scenarios & Compatibility
A tracking capping machine is suitable for a wide range of bottle and cap types:

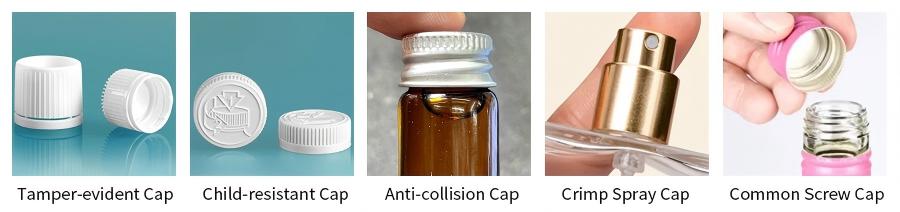

Supported Cap Types
- Tamper-evident Caps
- Child-resistant Caps
- Anti-collision Caps
- Crimp Caps
- Screw Caps
- Press-in Caps
- Specialty Pump and Spray caps
Typical Specifications for Cap
- Diameter: Ø20–Ø80 mm
- Height: 10–40 mm
Typical Specifications for Bottle
- Length: 160–360 mm
- Width: 140–260 mm
- Height: 250–500 mm
Industrial Applications
Application Industries
High-speed tracking capping machines are widely used in:
- Cosmetics and skincare packaging
- Personal care and shampoo production
- Household daily chemicals and detergents
- Pharmaceutical liquid packaging
- Health and hygiene product lines
Why Choose the TRPACK Tracking Capping System?
By the end of 2025, TRPACK’s tracking capping machines have been successfully deployed across numerous global customer production sites. When integrated with TRPACK’s filling and packaging equipment, they significantly enhance clients’ production efficiency. TRPACK assigns dedicated technical support teams to every customer we serve. Choose TRPACK for rapid machine setup, swift production ramp-up, fast changeovers, and expedited delivery!
How to Select the Right Tracking Capping Machine
When choosing a tracking capping machine, manufacturers should evaluate:
- Production speed requirements
- Bottle and cap compatibility
- Torque precision needs
- Changeover frequency
- Integration with filling and labeling equipment
- Supplier technical support and service network
A well-selected system delivers both short-term efficiency gains and long-term production scalability.
Conclusion: Strategic Upgrade for High-Performance Packaging Lines
The servo tracking capping machine represents a major evolution in automated cap twisting and sealing technology.
For manufacturers pursuing higher throughput, better sealing consistency, and smarter automation, the automatic servo tracking capping machine is no longer an option—it is a strategic necessity.
By combining continuous motion control, intelligent servo synchronization, and flexible changeover design, it enables manufacturers to achieve:
- Higher production efficiency
- Better sealing consistency
- Reduced downtime
- Improved product quality
- Scalable automation
Welcome to contact us to receive a tailored tracking capping machine solution.
