Automatic Carton Edge Sealing Machine
The fully automatic corner sealing machine is an automated packaging device that uses self-adhesive tape to simultaneously seal the top and bottom four corners of a carton.
It has manually adjustable carton sizes and specifications, and it automatically seals all four corners. It is simple to operate, convenient to use, easy to adjust, and it seals quickly. It is highly efficient and durable, and it is suitable for continuous, high-volume use in automated downstream packaging lines.
Application:
Featuring a special design, the tape is easy to apply, smooth, neat, and aesthetically pleasing. Using printed tape can further enhance the image of new products.
It is widely used in household appliances, textiles, food, general merchandise, pharmaceuticals, chemicals, and other industries. It can be used in conjunction with automatic carton sealing machines to complete "H-shaped" carton sealing.
Samples:
Features:
1. The width and height can be adjusted manually according to the carton specifications, making it convenient and fast.；
2. 90° corner turning machine, automatic box pushing by cylinder.；

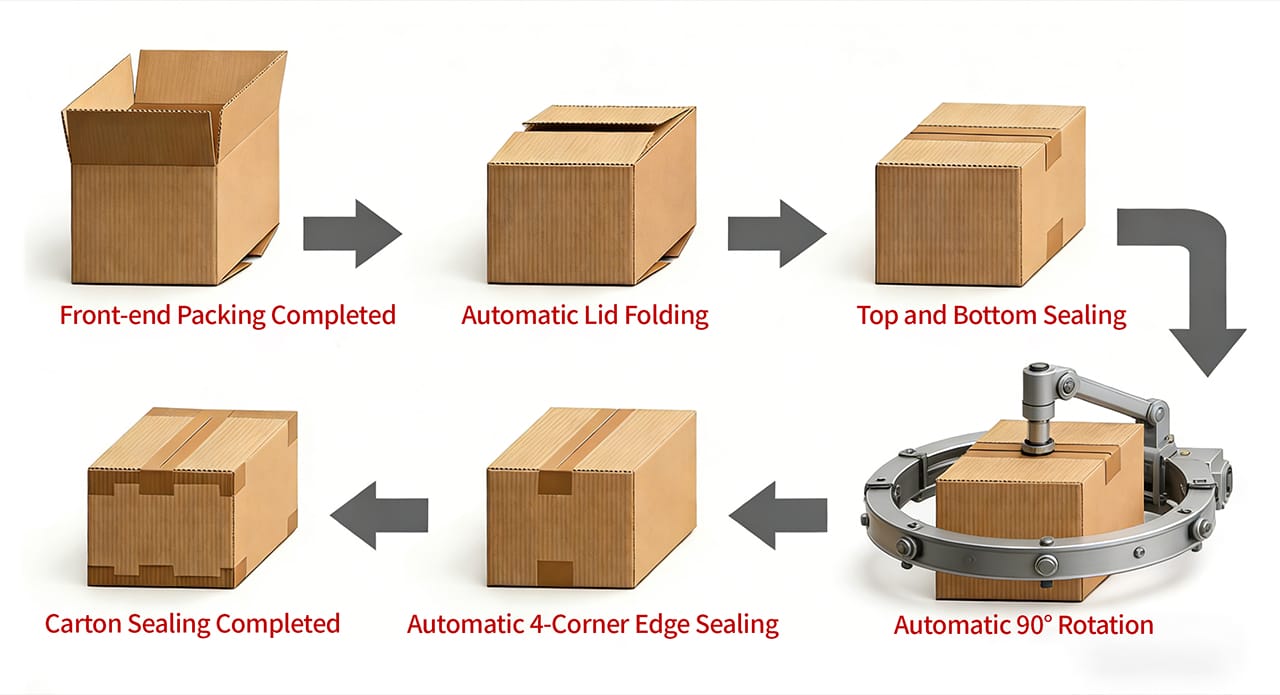

3. The top and bottom four corners of the cardboard box are automatically sealed and flattened simultaneously, quickly and smoothly.；
4. It can be combined with GPA, GPB, and GPC models to complete H-shaped carton sealing.
Specification:
| Carton sealing speed | 12-15cartons/min |
| Maximum packaging dimensions | L∞×W500×H500mm |
| Minimum packaging size | L150×W150×H150mm |
| Power supply | 220/380V 50Hz |
| Power consumption function | 240W |
| Applicable tapes | W48mm/60mm/75mm(Choose one to use.) |
| Machine dimensions | L1020×W850×H1350(Does not include front and rear roller frames.) |
| Weight | 1000KG |
