Automatic online printing and labeling machine - Terry Packing

Automatic online printing and labeling machine

The printing labeling machine adopts the pressing and blowing type labeling method, with pneumatic pressing labeling arms and vacuum labeling plates. It can blow labels non-contact onto the labeling surface, and the labeling pressure sensor and off-label detection sensor are optional for automatic detection and triggering of printing labeling operations. It is suitable for flat labeling. (Equipped with ZEBRA printing engine, with extremely high printing quality and reliability, ready-to-print-and-label mode, eliminating errors in code assignment, printing, data association and labeling)

Samples:

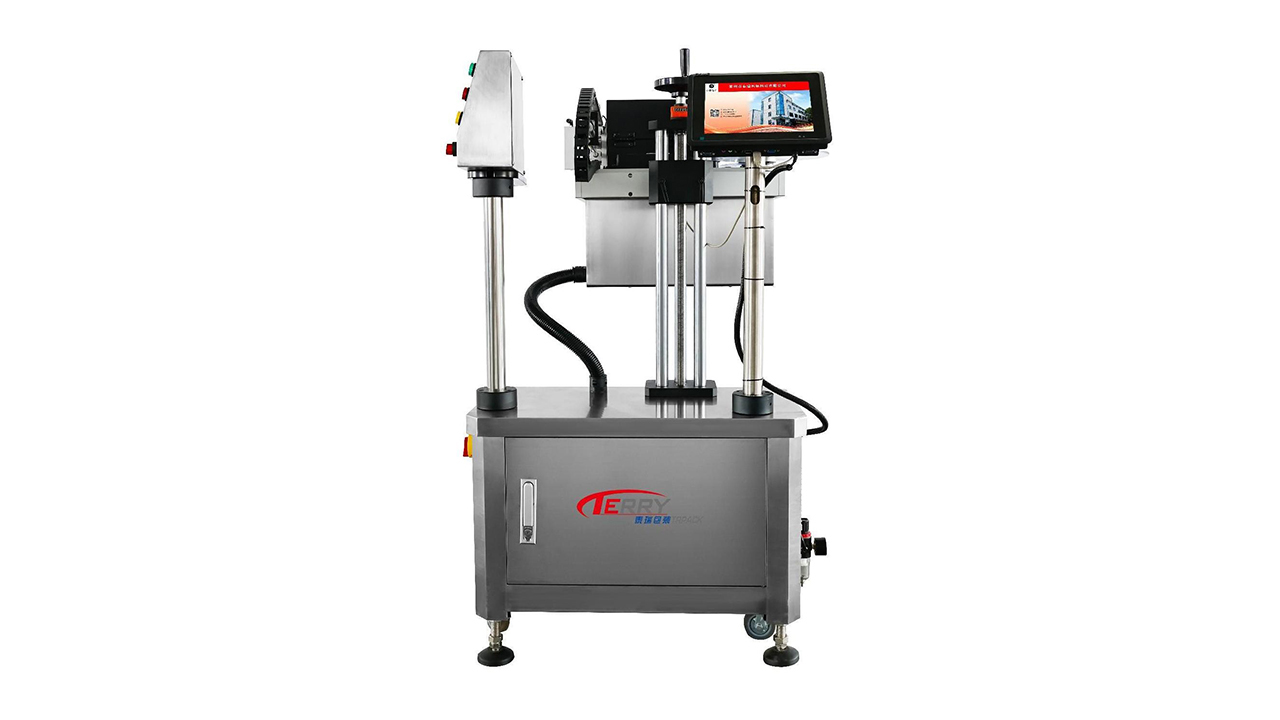

TRPACK Carton Labeling Machine

Working Principle:

Conveying & Feeding → Clamping & Positioning → Print Engine Printing → Labeling (Side) → Edge Folding → Finished Product Collection → Next Process

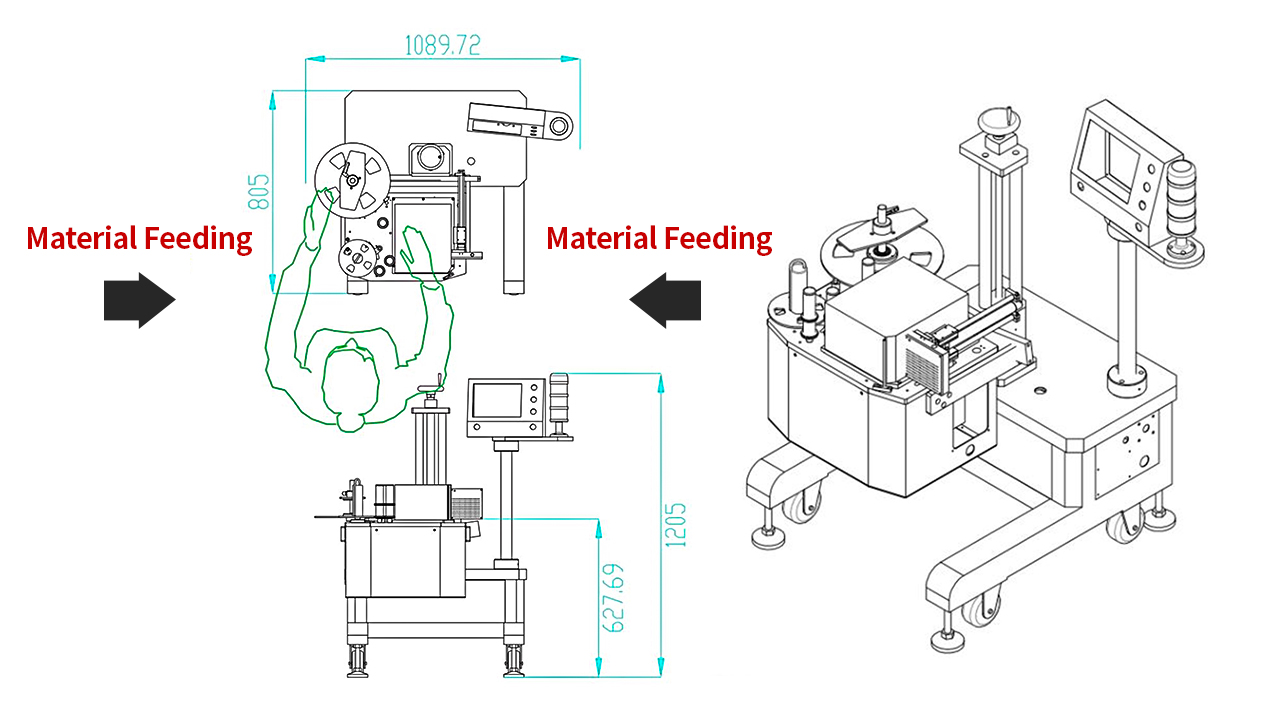

TRPACK side printing carton labeling machine

Working Principle:

Conveying & Feeding → Clamping & Positioning → Print Engine Printing → Labeling (Side) → Edge Folding → Finished Product Collection → Next Process

TRPACK side printing carton labeling machine

Features:

Connectable to Bottles and Cartons; Integrated with Traceability Print-and-Apply Systems



Specification:

Production Capacity 60 times/min
Labeling Accuracy ±1 mm
Power Supply AC 220V   50/60Hz
Power 1KW
Air Source Pressure 0.6-0.8MPa
Gas consumption 50L/min
Weight 150kg
Dimension of equipment L1100*W800*H1200mm
