Carbon Dioxide Laser Marking Machine

The laser marking machine utilizes imported CO2 radio frequency lasers, a high-speed galvanometer scanning system, and industry-leading control software, resulting in high speed, excellent beam quality, stable performance, and a high-end system configuration. The fully enclosed optical path system provides better protection for the optical components from external environmental influences. For on-the-fly marking, a professional fiber optic probe is used, enabling seamless and error-free marking. It features a Windows operating system, a fully Chinese interface, standard keyboard and mouse operation, and standard expansion interfaces. Using an air-cooling system, it is capable of continuous operation for extended periods.

Application:

Suitable for bottle/box marking.

Specification:

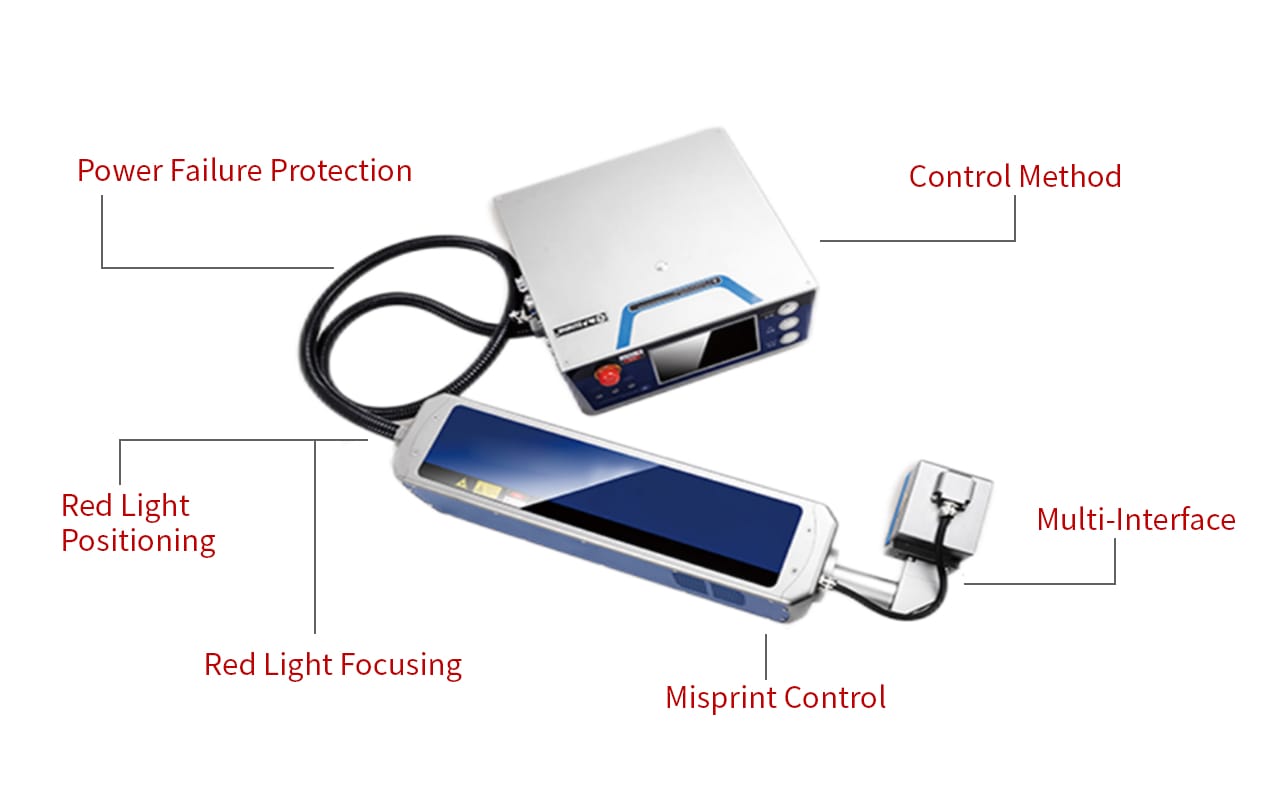

CO₂ Laser Marking Machine details

Power requirements 220V;50/60Hz;≤1100W
Rated power 30W
Laser wavelength 355nm
Marking area 90mm*90mm
(Maximum selectable range: 450mm*450mm)
Marking speed 18000mm/s
External connectors Serial port, USB, I/O, Ethernet port
Machine material All-aluminum structure
Machine weight 33kg
