TR-NJ Series Automatic Inkjet Printer
The TR-NJ Series Small Character Inkjet Printer features a next-generation control system with comprehensive functionality and leading performance. Its sleek, industrial-style stainless steel exterior design incorporates a 7-inch color LCD screen with multi-language options. This device supports switchable printing modes to deliver multi-line high-quality printing, providing suitable coding and marking solutions for diverse applications.
The TR-NJ series inkjet coders employ a modular system design with standard IP55 protection rating. Its intelligent ink delivery system and convenient consumable management significantly enhance machine stability and extend service life, reducing operational costs for manufacturers
Filling Volume
Application:
The TR-NJ series inkjet printers have a wide range of applications, including the electronics, food, pharmaceutical, daily chemical, auto parts, and construction industries.

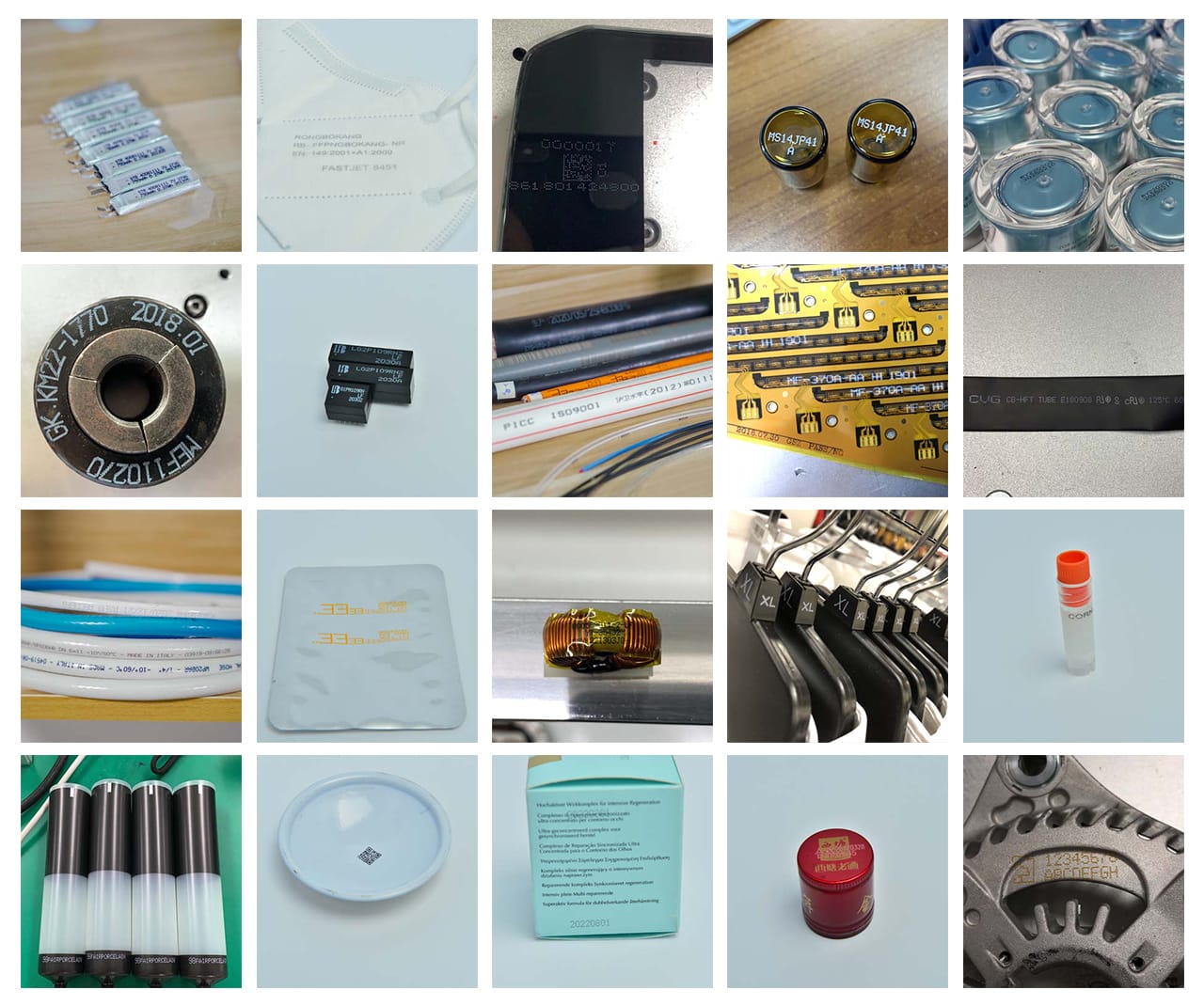

Samples:
Features:
1. Simple and practical industrial-style stainless steel exterior design.
2. Multi-language options and a 7-inch color LCD screen
3. Abundant external interfaces for device interconnection.
4. Intelligent consumable management system for effective consumable management.
5. Optimized printhead integrating heating, phase detection and amplification, positive pressure output, high-pressure isolation, and a printhead valve adapted to pigment inks, improving printing stability.
6. A wide variety of printing fields are available to meet customer needs greatly.
7. The Plus series is compatible with special inks such as anti-migration and lightweight pigment inks, offering a wide range of applications.

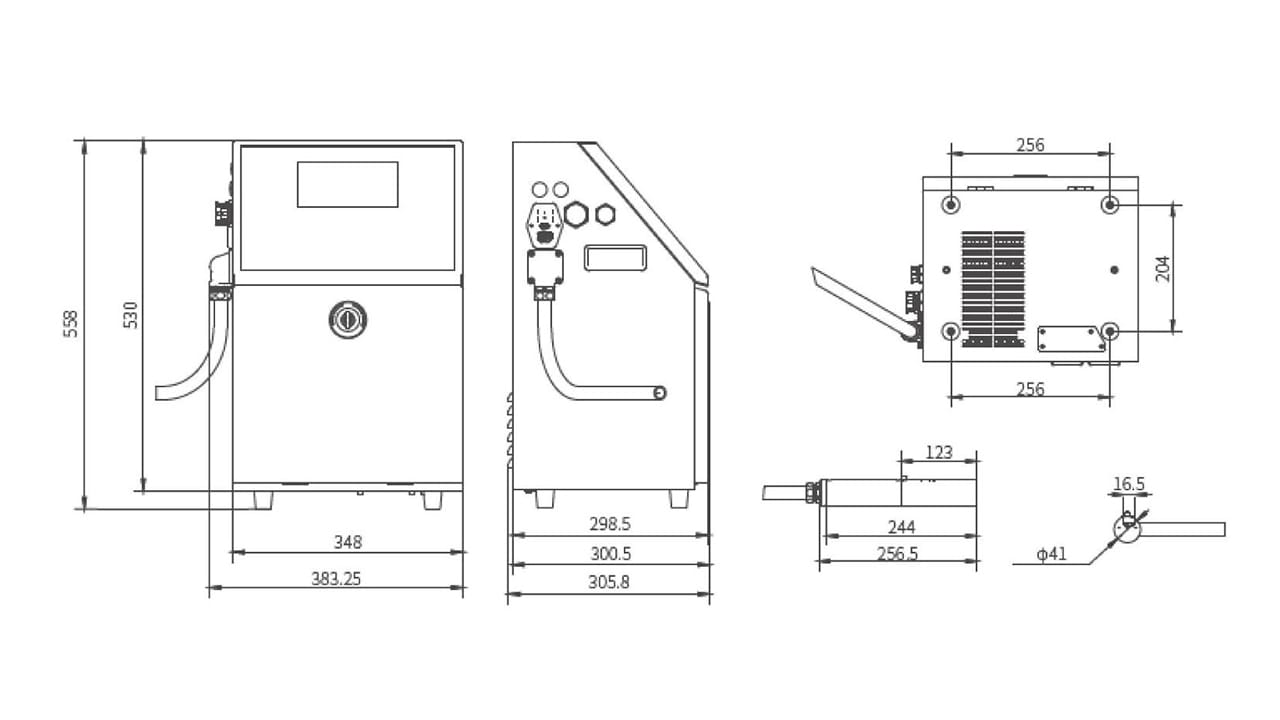

Specification:
| NJ340 | NJ360 | NJ360 Plus | |
| Nozzle | 70/60μm | 70/60/50/40μm | 70/60/50/40μm |
| Max. Vertical Print Dots | 25 | 34 | 34 |
| Max. Print Lines | 3 lines | 4 lines | 4 lines |
| Chinese Font Library | ■ | ■ | ■ |
| Multi-language Support | ■ | ■ | ■ |
| High-speed Software | X | ■ | ■ |
| 90° Rotated Printing | ■ | ■ | ■ |
| IP55 Industrial Protection Grade | ■ | ■ | ■ |
| Special Counter | ■ | ■ | ■ |
| Clock Replacement | ■ | ■ | ■ |
| Encoder Interface | ■ | ■ | ■ |
| USB Port | ■ | ■ | ■ |
| Serial Port | □ | □ | □ |
| Pigment Ink Pump | X | X | ■ |
| Recovery Pump | X | X | ■ |
| Positive Air Pump | □ | □ | □ |
| Cleaning Pump | ■ | ■ | ■ |
| Dye-based Ink | ■ | ■ | ■ |
| Light Pigment Ink | X | X | ■ |
| Consumables | |||
| Optional Ink Type： 750ml/375ml Cartridge Ink | |||
| Optional Ink Color： Black, Red, Yellow, etc. | |||
| Special Ink： Anti-migration, Light Pigment, etc. (See Ink List for Details) | |||
| Thinner： Selected According to Ink Type | |||
| Cleaning： Agent Selected According to Ink Type | |||
| Throat Tube | Length: 2700mm; Diameter: 21mm; Bend Radius: 150mm. | ||
| Optional: 5m | |||
| Printing Height | 1.2–15mm | ||
| Maximum Printing Speed ⁰² | 520m/min | ||
| For 40μm nozzle model, when printing single line with 5 dots. | |||
| Non-contact Printing Distance | 2–15mm | ||
| Input System | US Keyboard Layout | ||
| Operating Temperature | 5–45°C | ||
| User Fields | QR Code, Barcode, Pattern, Clock, Counter, Shift, etc. | ||
| Electrical Requirements | 200–240VAC, 50Hz | ||
| Power | Rated Power: 150W | ||
| Net Weight | 27kg | ||
| Gross Weight (Incl. Accessories & Packaging) | 46kg | ||
| Notes | |||
| Legend: ■ = Standard；□ = Optional; X = Not Applicable | |||
