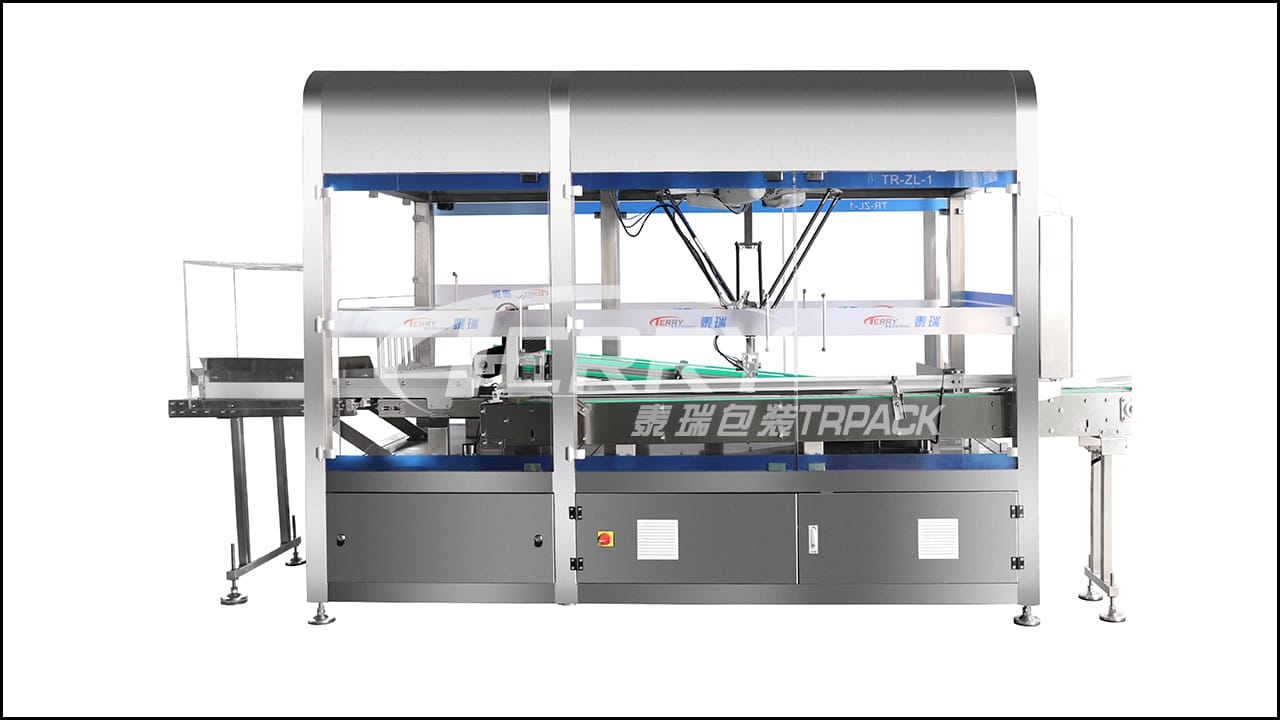

TR-ZL Fully Automatic Spider Hand Bottle Unscrambler
TRPACK’s TR-ZL fully automatic spider hand bottle unscramblerus uses the most advanced and stable robotic arm method to automatically arrange the disordered bottles in an orderly manner onto the conveyor belt. Firstly, the coordinates and axis data of each bottle are transmitted to the robotic arm system through the Cognex vision detection system. Then, the robotic arm automatically picks up and places the bottles onto the conveyor.
Applicable Bottle
Filling Volume
Production Capacity
Application:
For Cosmetics and Pharmaceuticals: This includes lotions, perfumes, bath oils, hand soaps, and shampoos.
For Household and Industrial Products: This includes dishwashing liquids, dish soaps, laundry detergents, cleaning agents, disinfectants, and bleaches.

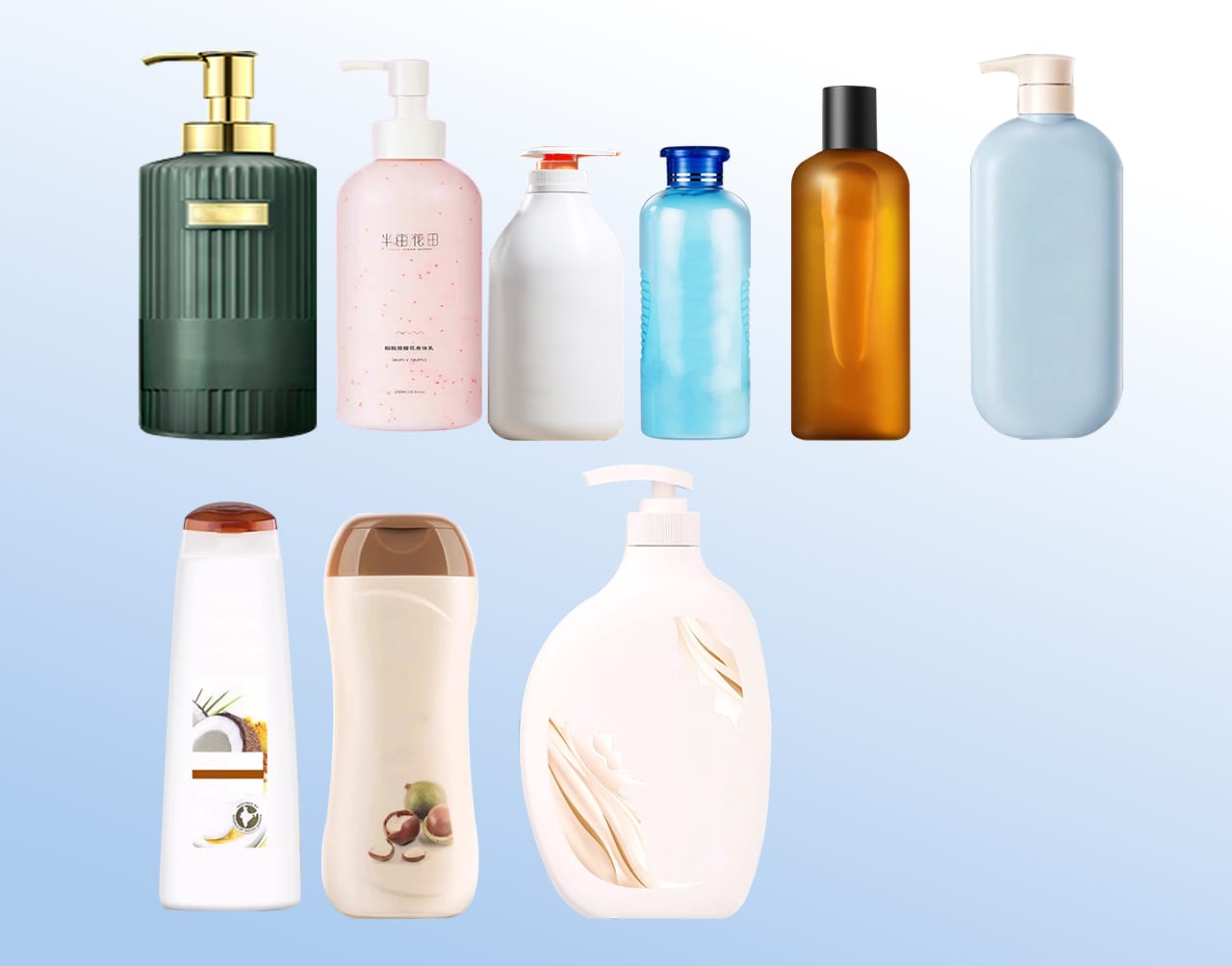

Samples:
Features:
This automatic bottle unscrambler uses a spider-type mechanical hand. The entire machine can be re-produced without any mechanical adjustments and without the need to replace any molds.
1. High Degree Of Automation: The spider-hand bottle handling system can perform automated operations such as picking and placing bottles, significantly enhancing work efficiency.
2. Strong Flexibility: It can adapt to various bottle types, demonstrating strong adaptability and flexibility.
3. High Production Efficiency: It can process a large number of bottles in a short period of time, greatly improving production efficiency.
4. Cost Savings: Reducing the number of manual interventions, it significantly reduces labor costs.
5. Lower Error Rate: With a high degree of automation, it has high accuracy and can reduce the occurrence of human errors.
Specification:
| Model | TR-ZL-1 | TR-ZL-2 |
| Production Capacity | ≥40 bottles/min | ≥ 70 bottles/min |
| Applicable Bottles | For round bottles / square flat bottles / irregular-shaped bottles Bottle Width: Φ60mm - Φ112mm (Maximum Bottle Width: 250mm) Bottle Height: 130mm - 330mm |
|
| Air Operated Resource | 0.6 ~0.8Mpa (Use dry and clean compressed air) | |
| Power Supply | AC380V 50Hz 4KW, AC380V 50Hz Power 4KW | AC380V 50Hz 6KW, AC380V 50Hz Power 6KW |
| Air Consumption | 150 L/Min | 250 L/Min |
| Overall Dimensions | 4500*4200*2400mm | 5000*4200*2400mm |
| Overall Weight | About 1500 kilograms (per unit) | About 2000 kilograms (per unit) |
Function:

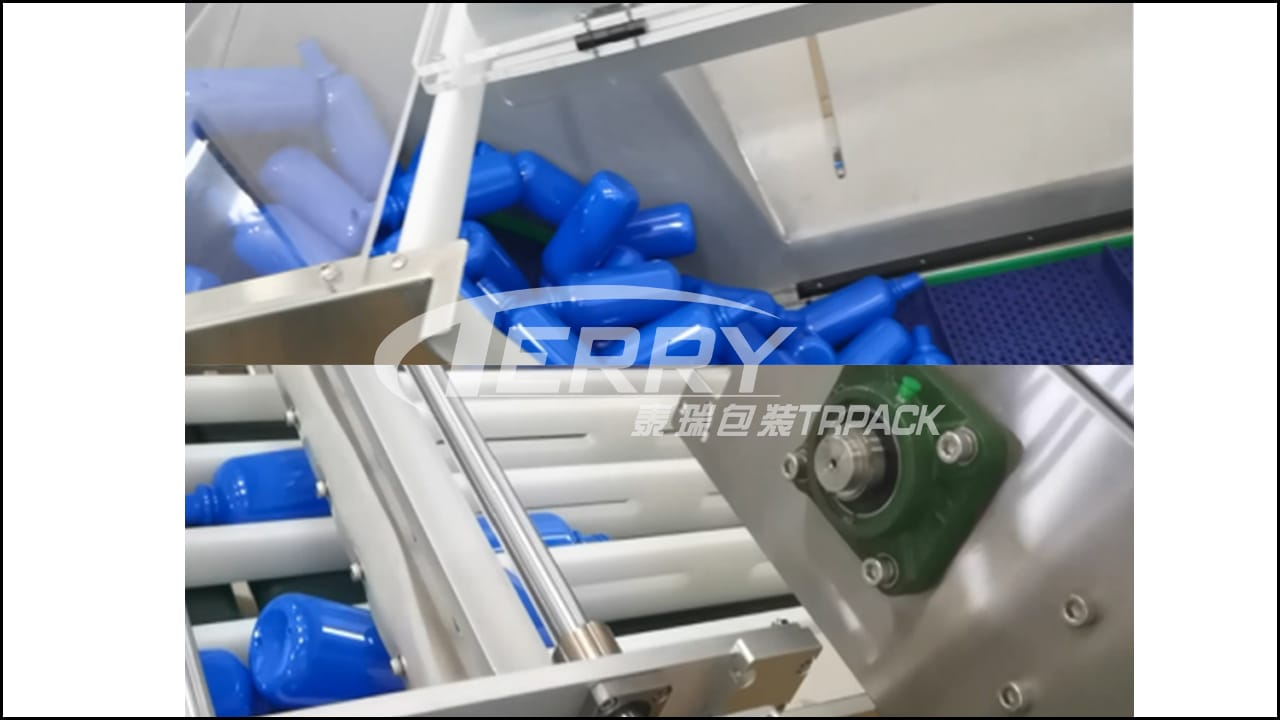

1.Automatic Bottle Loading:
By using a customized bottle loading equipment, automatic bottle loading can be achieved and then transferred to the spider hand for bottle retrieval and transportation.

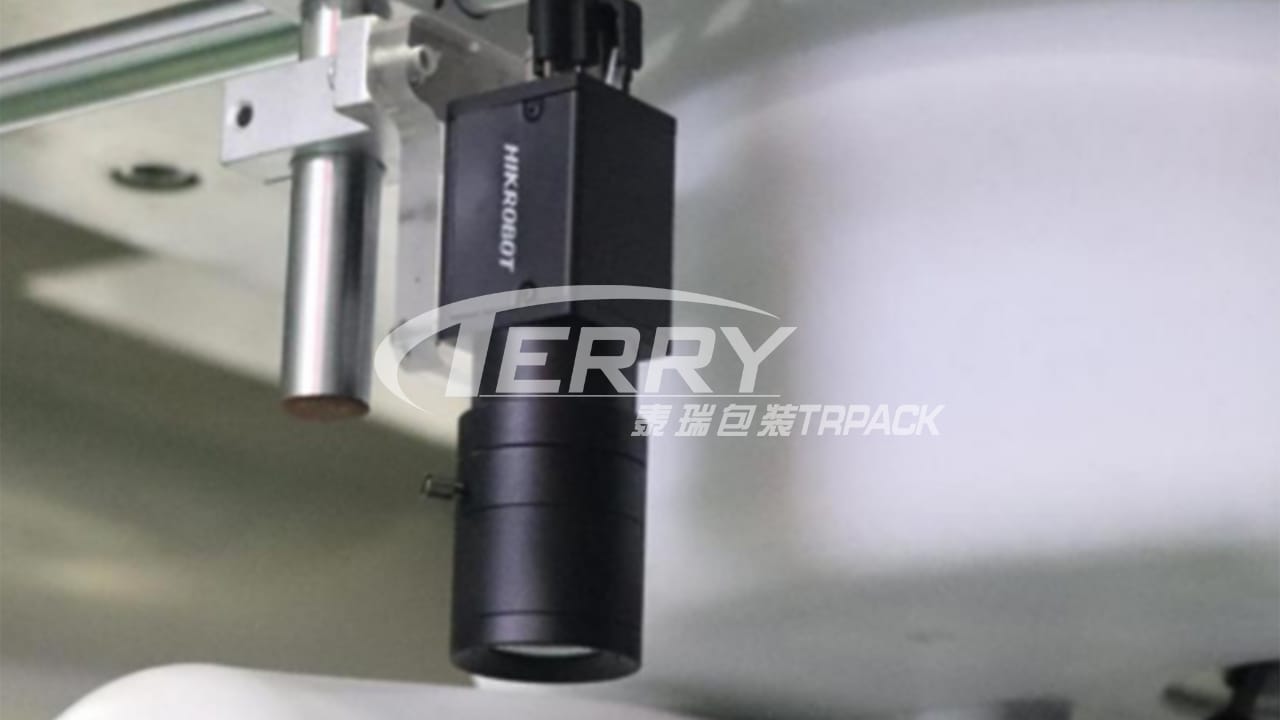

2.High Precision:
By using visual acquisition technology, high-precision object detection, recognition and positioning can be achieved. Accurate collection and grasping can be carried out.
