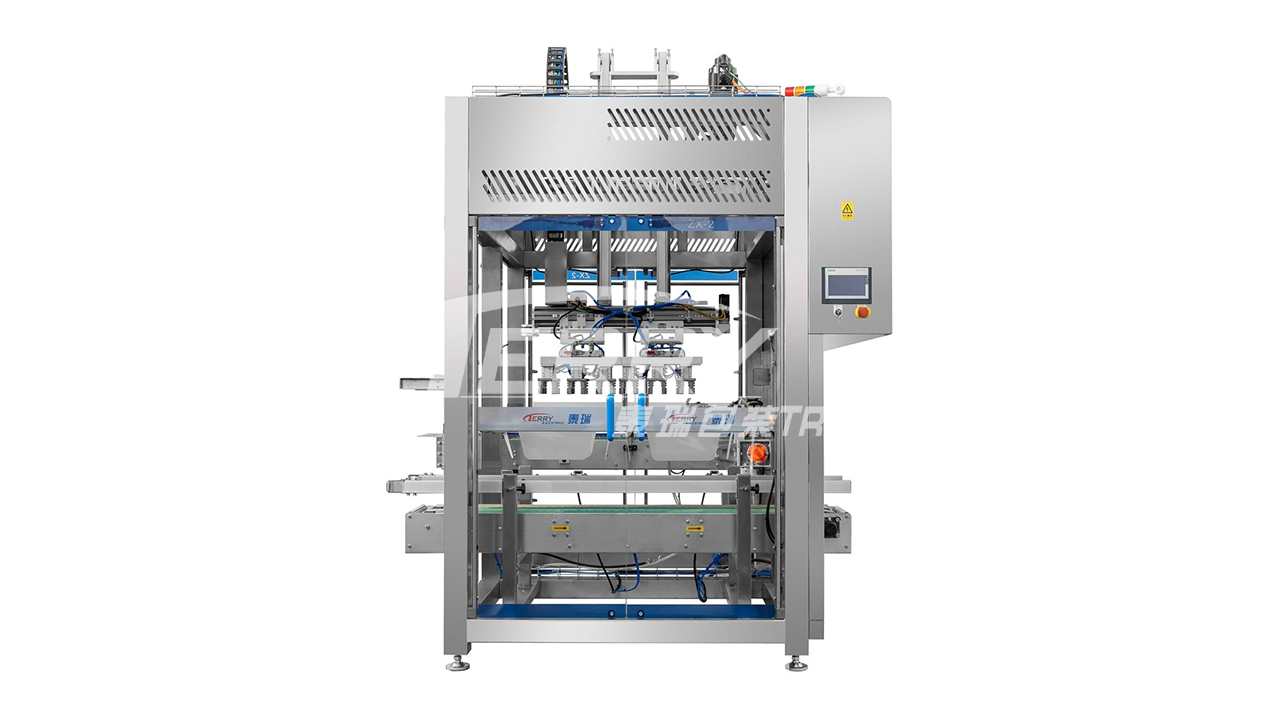

ZX-2 Automatic Case Packer
This machine is suitable for automatic bottle filling of already bound cartons, achieving fully automatic secondary packaging of the cartons. It can be applied to the automated production of bottle products in industries such as cosmetics and daily chemicals.
Samples:
Specification:
| Production Capacity |
10 - 15 boxes/ min * Actual production capacity may vary depending on product size, packaging material, etc. |
| Applicable Boxes | L200-500mm;W150-400mm;H100-400mm |
| Applicable Bottle | Φ30-60mm H80-280mm |
| Power supply | AC 380V 50Hz |
| Power | 4KW |
| Gas Source Pressure | 0.5-0.7Mpa |
| Gas Consumption | 100L/Min |
| Overall Dimensions | 2000*1800*2500mm(L*W*H) |
| Weight | About 1000Kg |
Option:

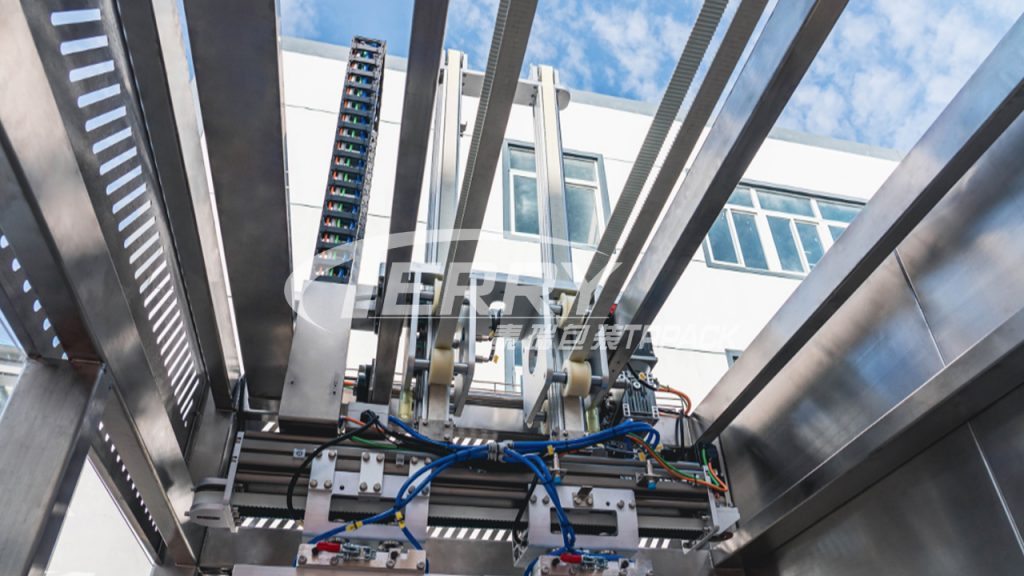

1.The "cross-shaped" motion mechanism of the servo drive enables bottle picking and box-filling. It features a patented design and is highly adjustable and convenient to operate.

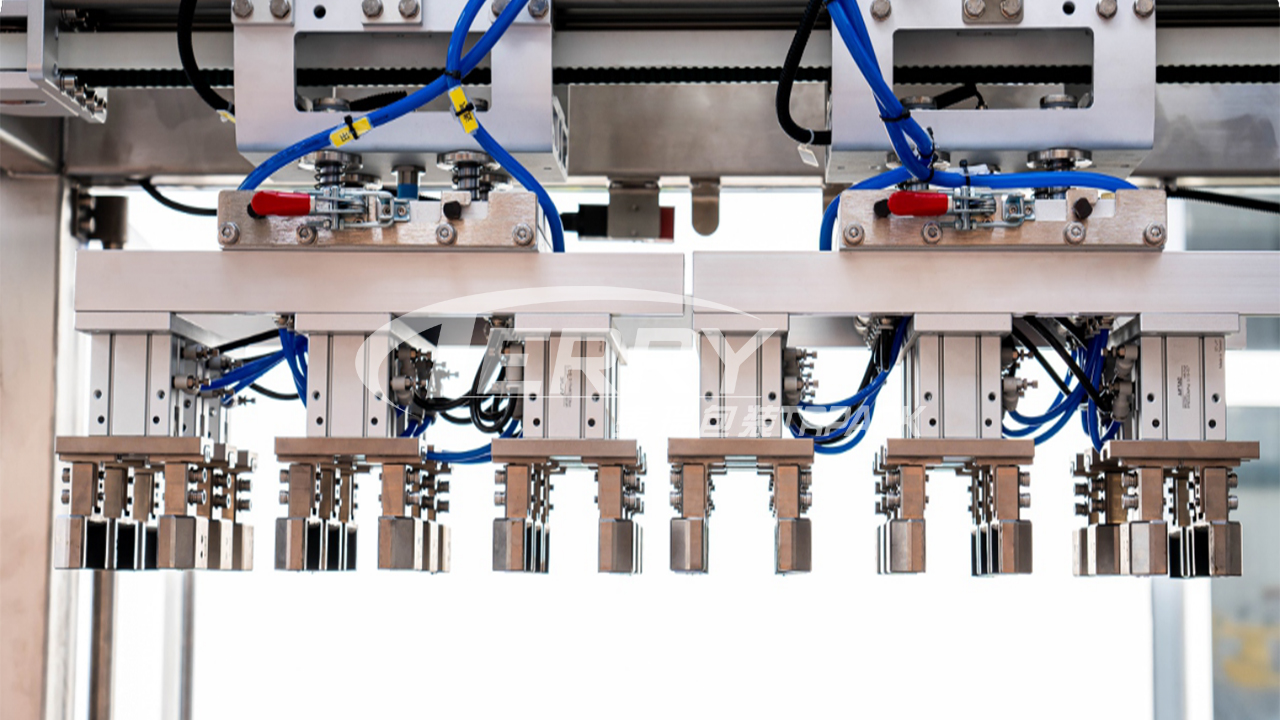

2. Easy to adjust specifications. 2 packing stations, high production capacity. By changing different packing molds (such as bottle grabber, suction cups, hands, etc.), quick installation connections can be used to quickly switch specifications. The owner needs to provide bottles, caps and matching cartons. Our company needs to make packing molds based on the packaging materials and cartons.

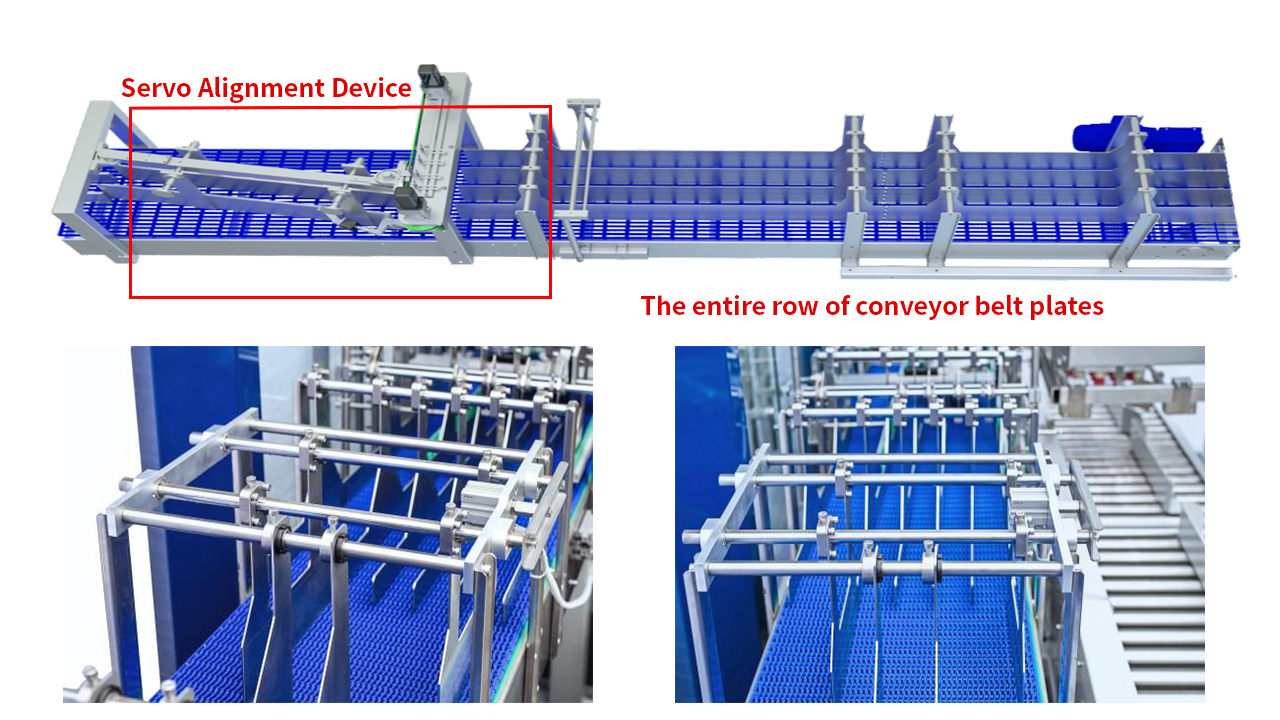

3.The lane separation and alignment mechanism controlled by servo motors can meet the requirements of different packing arrangements. (This function is optional.)
